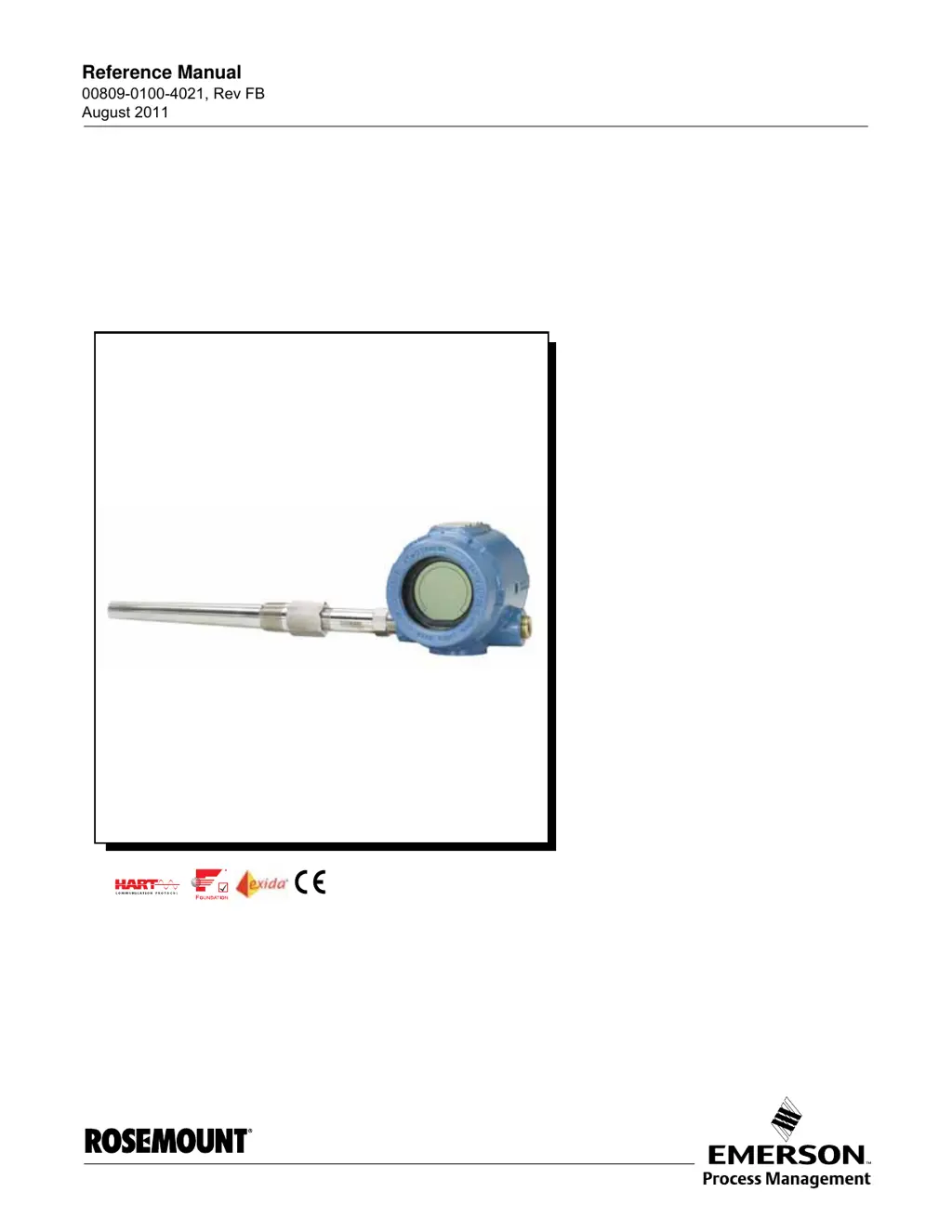

Rosemount 3144P - User Manual

Other manuals for Rosemount 3144P

Quick Start Guide26 pages

Questions and Answers

J
Joshua WilliamsJul 27, 2025
What to do if I observe erratic output from my Rosemount 3144P Transmitter?
- C
  Candice RichardJul 27, 2025
  To troubleshoot erratic output on a Rosemount Transmitter, first, ensure adequate voltage (12.0 to 42.4 Vdc) at the transmitter terminals. Next, check for intermittent shorts, open circuits, and multiple grounds in the loop wiring. A Field Communicator can be used in loop test mode to generate signals. Also, use the transmitter test mode to check for module failure.
P
Paul HillAug 4, 2025
Why does my Rosemount 3144P Transmitter not communicate with the Field Communicator?
- B
  Becky MillsAug 4, 2025
  If a Rosemount Transmitter does not communicate with a Field Communicator, verify there's a minimum of 250 ohms resistance in the loop. Check for adequate voltage at the transmitter terminals; a minimum of 12.0 V is needed for operation and 12.5 V for digital communication. Also, check for intermittent shorts, open circuits, and multiple grounds in the loop wiring. Verify the revision level of the transmitter device descriptors (DDs) stored in your communicator. Contact Emerson Process Management Customer Central for assistance.
K
Krista MillerAug 11, 2025
What to do if my Rosemount 3144P shows a high output?
- A
  Antonio ThompsonAug 11, 2025
  To troubleshoot a high output issue in a Rosemount Transmitter, connect a Field Communicator and use the transmitter test mode to check for sensor or module failure. Inspect for sensor open circuits and whether the process variable is out of range. Check the output voltage of the power supply at the transmitter terminals, ensuring it's between 12.0 and 42.4 Vdc. Also, check for dirty or defective terminals, interconnecting pins, or receptacles. Use a Field Communicator to check the sensor limits.
J
Jacqueline MckenzieAug 19, 2025
How to troubleshoot low or no output on a Rosemount Transmitter?
- R
  Richard HessSep 12, 2025
  If a Rosemount Transmitter has low or no output, check for adequate voltage (12.0 to 42.4 Vdc) at the terminals and inspect for shorts and multiple grounds in the loop wiring. Also, check for proper polarity at the signal terminal, loop impedance, and wire insulation for shorts to ground. A Field Communicator can be used in transmitter test mode to isolate sensor or electronic module failures. Also ensure the process variable is within range and check the sensor limits using a Field Communicator. A Field Communicator can be used in loop test mode.

Summary

Introduction to Rosemount 3144 P Transmitter

Overview of the Rosemount 3144 P Manual

Provides a general introduction to the manual's purpose and content.

Key Considerations for Rosemount 3144 P Installation

Discusses general and electrical factors impacting transmitter installation and performance.

Rosemount 3144 P Installation Procedures

Critical Safety Messages for Installation

Highlights essential safety precautions to prevent injury and equipment damage during installation.

Commissioning the Rosemount 3144 P Transmitter

Outlines the steps for initial setup and verification of the transmitter before operation.

Proper Mounting of the Rosemount 3144 P Transmitter

Details recommended practices for physically attaching the transmitter to ensure optimal performance and prevent issues.

HART Commissioning of the Rosemount 3144 P

Using the Field Communicator for HART Commissioning

Explains how to interface with the transmitter using a Field Communicator for configuration.

Configuring HART Parameters for Rosemount 3144 P

Covers essential parameter settings for HART communication and device operation.

Calibrating the Rosemount 3144 P Transmitter

Details the process of adjusting the transmitter's measurement accuracy using trim functions.

FOUNDATION Fieldbus Configuration for Rosemount 3144 P

Understanding FOUNDATION Fieldbus Block Information

Provides essential details on blocks, modes, and parameters used in FOUNDATION Fieldbus.

Key FOUNDATION Fieldbus Function Blocks

Describes the purpose and functionality of core function blocks like Resource, Transducer, and AI.

Configuring the Analog Input (AI) Block

Details the setup and configuration of the Analog Input block for process measurements.

Maintenance of the Rosemount 3144 P Transmitter

Routine Maintenance Procedures

Outlines general maintenance requirements and schedules for the transmitter.

Sensor Checkout and Troubleshooting

Describes procedures for checking sensor functionality and identifying faults.

Safety Instrumented System (SIS) Certification

Safety-Certified Transmitter Certification Details

Details the SIL ratings and certifications applicable to the transmitter for safety applications.

Installation Requirements for Safety-Certified Transmitters

Specifies installation practices to maintain safety certification and system integrity.

Prior Use (PU) Safety Instrumented System Requirements

Overview of Prior Use Safety Instrumented Systems

Introduces the application of the transmitter in Prior Use Safety Instrumented Systems per IEC61508.

Understanding Safe Failure Fraction (SFF)

Explains the Safe Failure Fraction calculation and its importance for safety applications.

Rosemount 3144 P Reference Data

Physical Specifications of the Rosemount 3144 P

Provides details on dimensions, materials, enclosure ratings, and conduit connections.

Performance Specifications and Accuracy

Outlines accuracy, stability, vibration, RFI, and EMC performance metrics.

Rosemount 3144 P Product Certifications

HART;4-20 mA Product Certifications

Lists approvals and hazardous location certifications for HART/4-20mA models.

Installation Drawings for Hazardous Locations

Refers to installation drawings for specific hazardous location certifications.

Rosemount 3144P Specifications

General

Type	Temperature Transmitter
Housing Material	Aluminum or Stainless Steel
Operating Temperature	-40 to 85 °C (-40 to 185 °F)
Communication Protocol	HART
Diagnostics	Yes
Display	Optional LCD
Ambient Temperature Range	-40 to 85 °C (-40 to 185 °F)
Input	RTD, Thermocouple, mV, Ohm
Output	4-20 mA with HART
Mounting	Rail
Power Supply	12-42 VDC
Process Temperature Range	Depends on sensor type
Enclosure Rating	NEMA 4X, IP66
Stability	±0.1% of URL per year
