Rosemount 3144P - Using the Field Communicator for HART Commissioning

Reference Manual
00809-0100-4021, Rev FB
August 2011
Rosemount 3144P
3-4
HART
Field Communicator
Interface

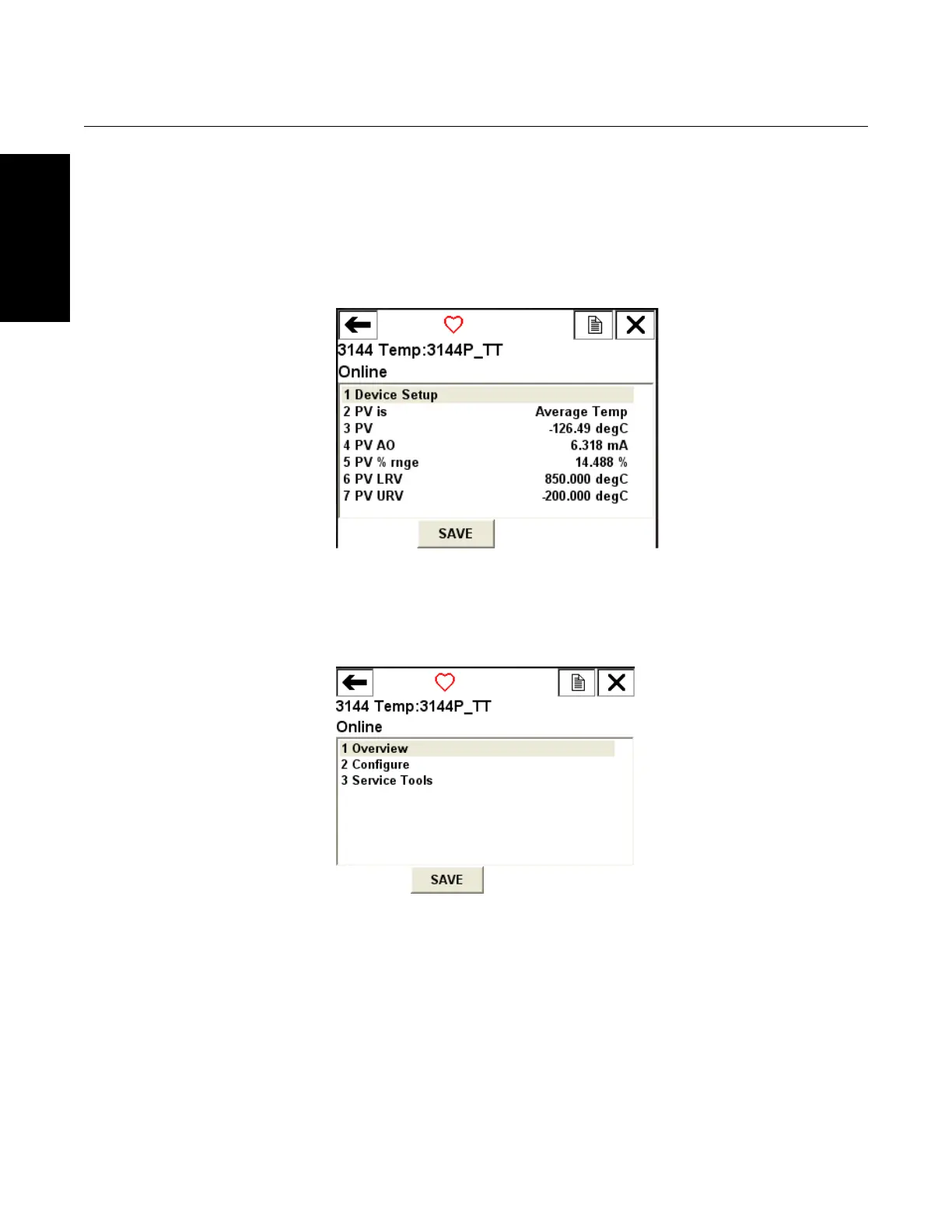

Figure 3-1. Traditional Interface The corresponding Menu Tree can be viewed on page 3-5.
The fast key sequence can be viewed on Table 3-1 on page 3-6.
Figure 3-2. Device Dashboard The corresponding Menu Tree can be viewed on page 3-6.
The fast key sequence can be viewed on Table 3-2 on page 3-10.
