Rosemount 3144P - Dimensional Drawings

Reference Manual
00809-0100-4021, Rev FB
August 2011
A-11
Rosemount 3144P

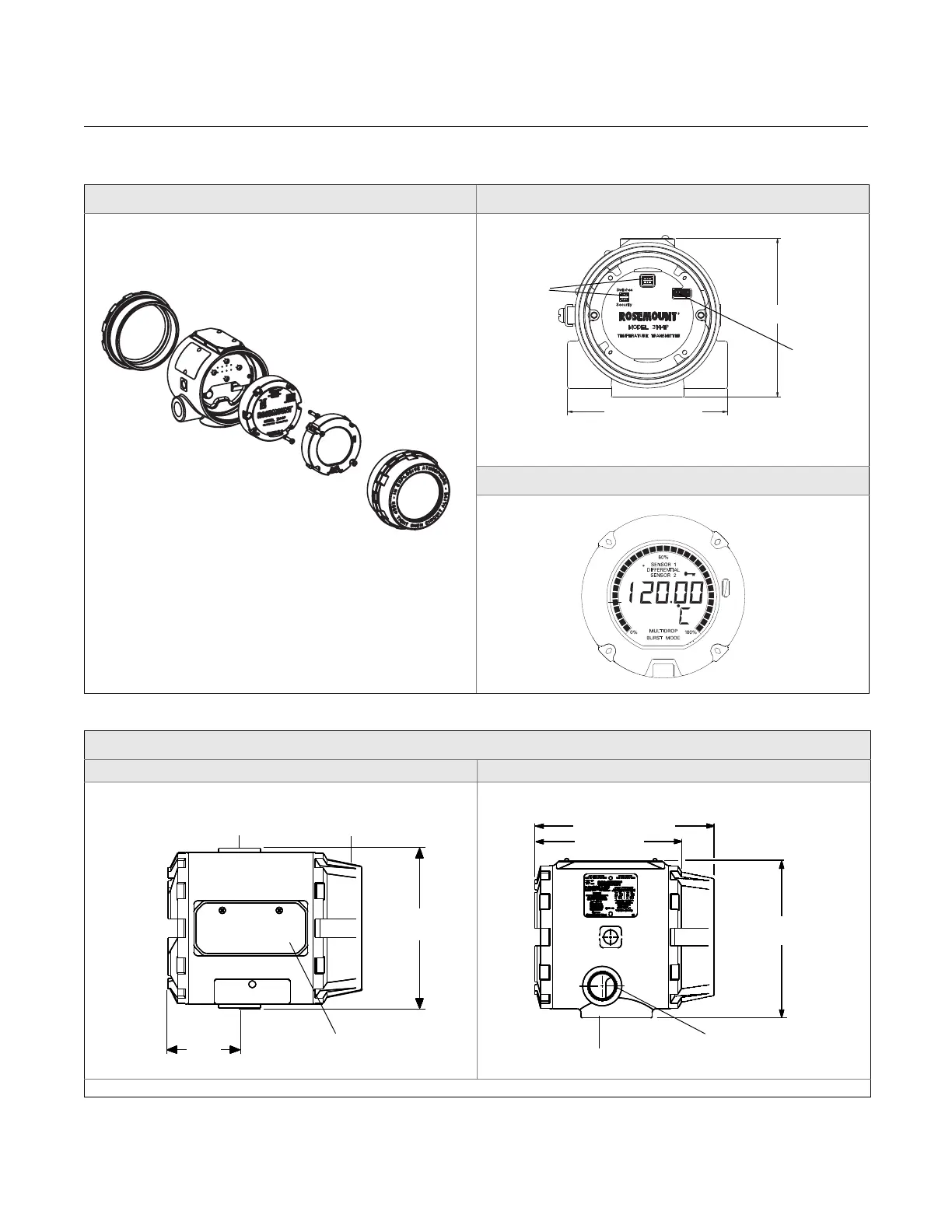

DIMENSIONAL DRAWINGS
Transmitter Exploded View Switch Location
LCD Display Faceplate
LCD Display
Electronics Module
Nameplate
Meter Cover
Cover with Wiring Diagram Label
Housing with
Permanent
Terminal Block
Switches
(1)
LCD
Connector
4.4 in. (112 mm)
4.4 in. (112 mm)
(1) Alarm and Write Protect (HART),
Simulate and Write Protect (F
OUNDATION Fieldbus)
Transmitter Dimensional Drawing
Top View Side View
Dimensions are in inches (millimeters)
2.0
(51)
4.4
(112)
Label
Conduit Entry Meter Cover
5.2 (132) with
LCD Display
4.4 (112)
4.4
(112)
Conduit Entry
3
/8-16 UN-2B
