Reference Manual
00809-0100-4021, Rev FB
August 2011
Rosemount 3144P
2-2
COMMISSIONING The 3144P must be configured for certain basic variables to operate. In many
cases, these variables are pre-configured at the factory. Configuration may be
required if the variables need to be changed.
Commissioning consists of testing the transmitter and verifying transmitter
configuration data. Rosemount 3144P transmitters can be commissioned
either before or after installation. Commissioning the transmitter on the bench
before installation using a Field Communicator or AMS ensures that all
transmitter components are in working order.
For more information on using the Field Communicator with the 3144P
transmitter, see “HART Commissioning” on page 3-1. For more information on
using the 3144 with F
OUNDATION fieldbus, see Section 4: Foundation Fieldbus
Configuration.

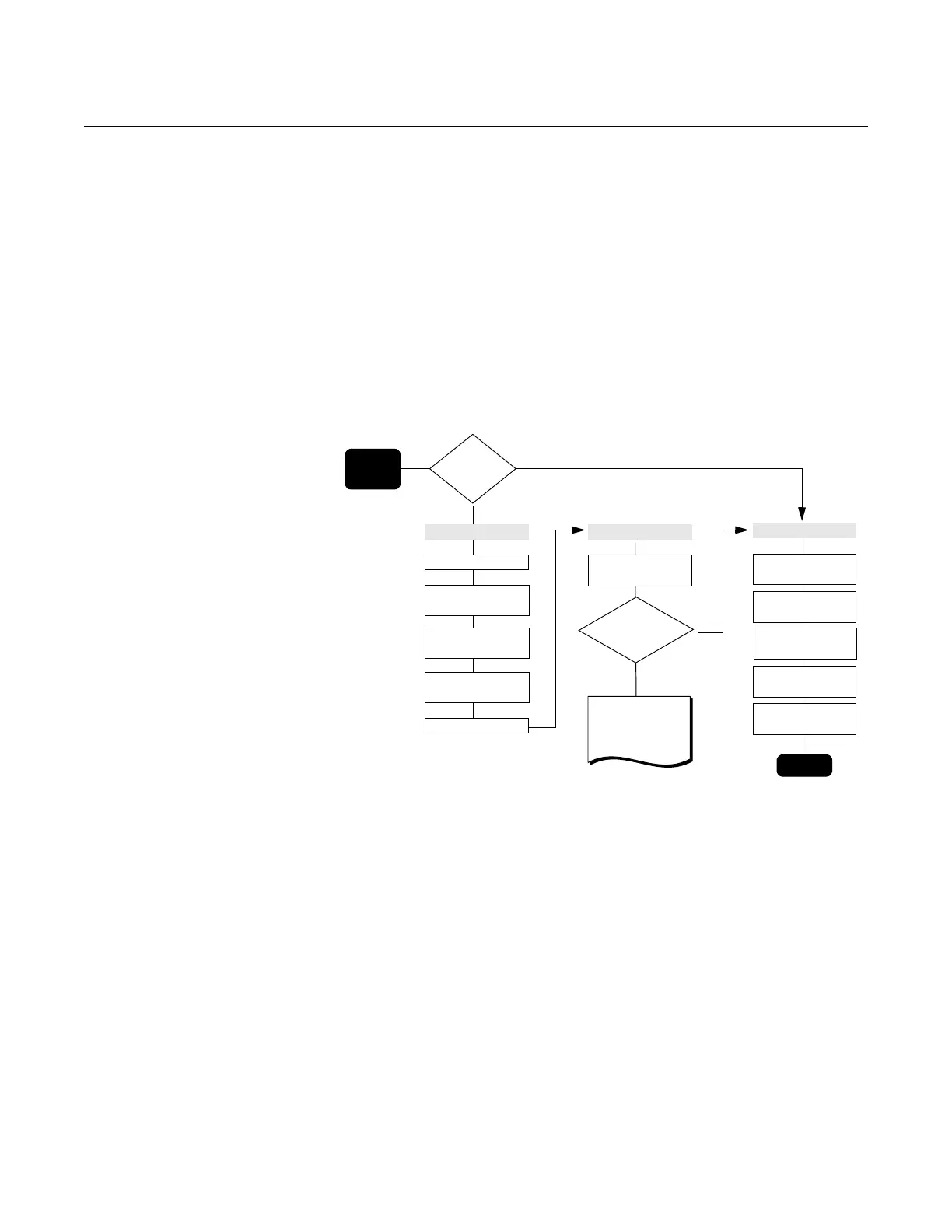

Figure 2-1. Installation Flowchart
Setting the Loop to
Manual
Set the process application loop to manual when sending or requesting data
that would disrupt the loop or change the output of the transmitter. The Field
Communicator or AMS will prompt to set the loop to manual, when necessary.
Acknowledging the prompt does not set the loop to manual, it is only a
reminder. Setting the loop to manual is a separate operation.
No
Yes
No
Yes
Bench
Calibration?
BASIC SETUP
Refer to
Section 5:
Maintenance
Set Units
Set Number
of Wires
Set Damping
Set Range
Values - HART
Set Sensor
Types
VERIFY
Simulate
Sensor Input
FIELD INSTALL
Set Jumpers or
Switches
Mount the
Transmitter
Power the
Transmitter
Check for
Process Leaks
Wire the
Transmitter
START
HERE
Done
Within
Specifications?
To Next Page
