Rosemount 3144P - Installation Drawings for Hazardous Locations

Reference Manual
00809-0100-4021, Rev FB
August 2011
B-17
Rosemount 3144P

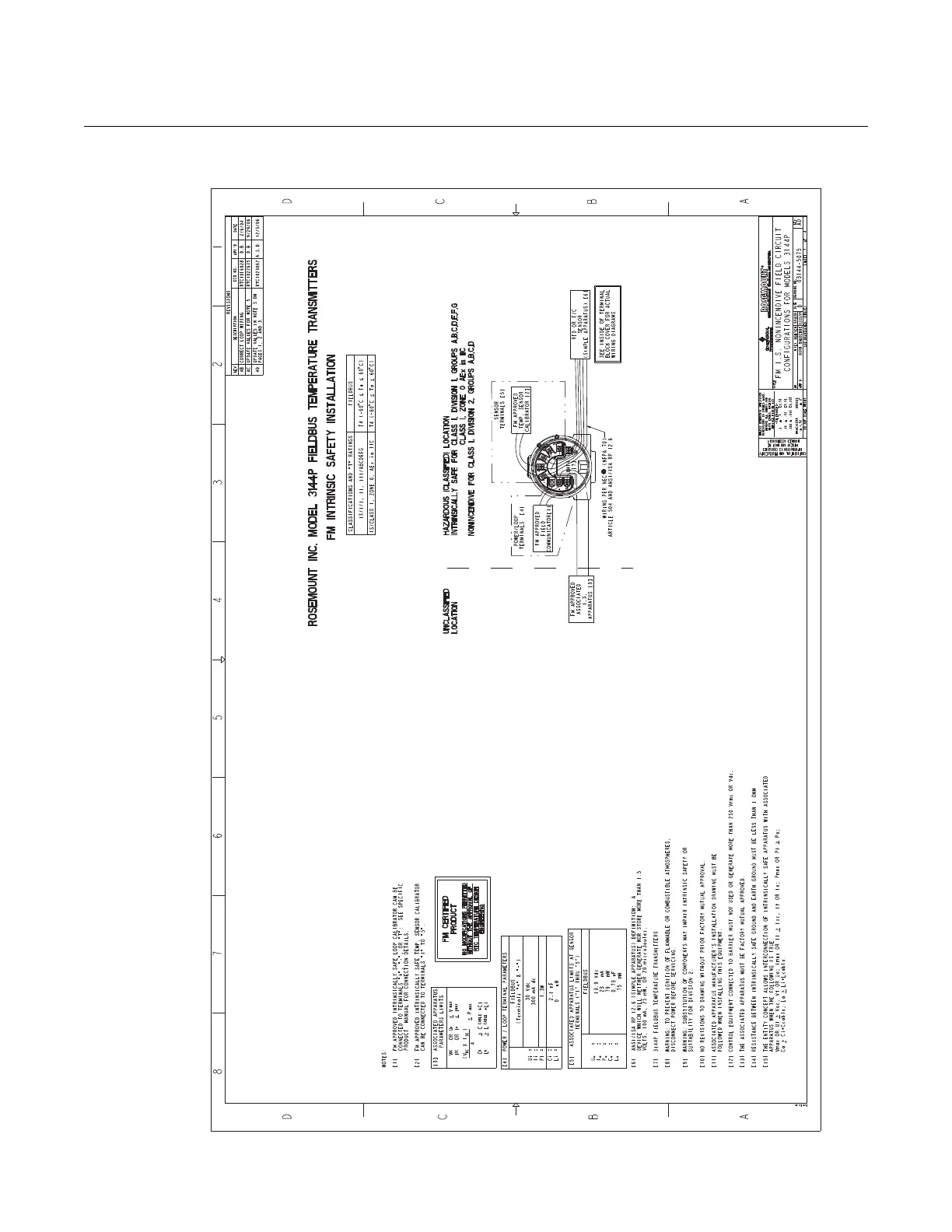

Figure B-1. FM Intrinsically Safe (Fieldbus) Installation Drawing 03144-5075, Rev. AD, Sheet 1 of 4.
