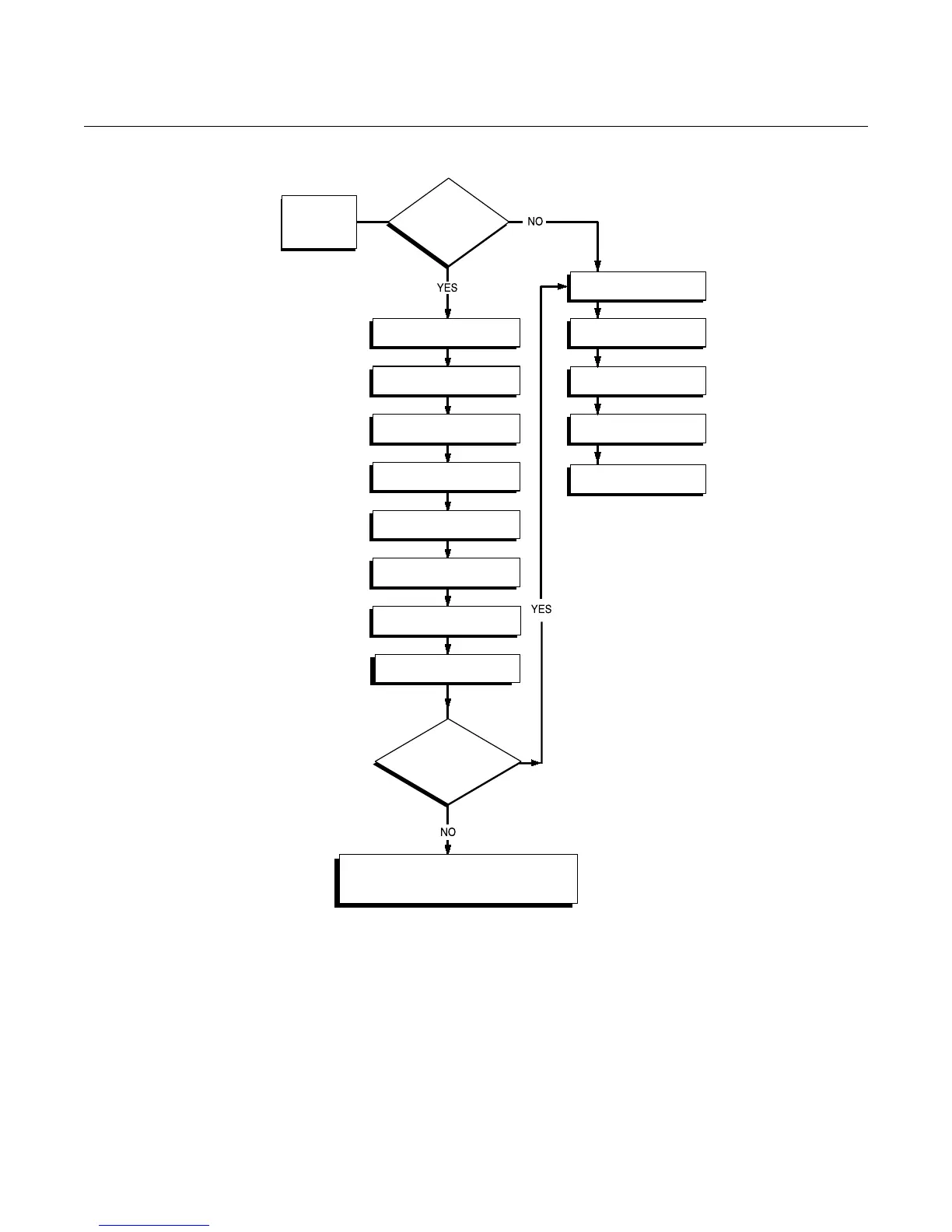

Figure 2-1. Installation Flowchart
START
HERE
Bench
Calibration?
BASIC SETUP
Set Sensor Type
Set Number of Wires
Set Units
Set Range Values
Set Damping
VERIFY
Simulate Sensor Input
Within
Specifications?
Refer to Section 4: Operation and
Maintenance
FIELD INSTALL
Mount Transmitter
Wire Transmitter
Power Transmitter
FINISHED
244-244_03A
