8.82 (224) BOTH OPEN MAX
8.06 (205) BOTH CLOSED MIN
6.33 (161) OPEN MAX
6.08 (154 CLOSED MIN
.70
[17,8]
P DEEGAN
12/13/11
S IFFT
12/27/11
00405-1001
4
7

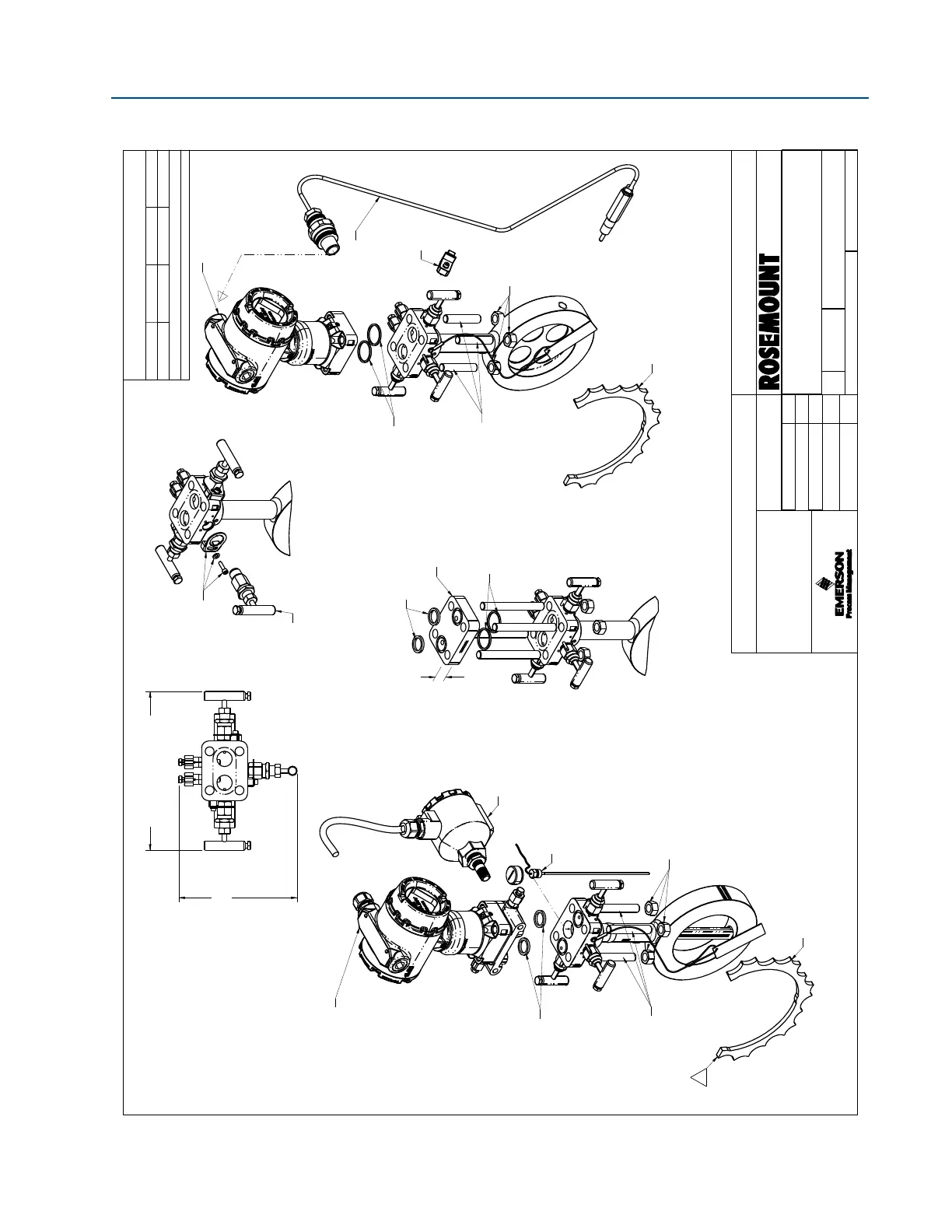

DIMENSIONAL DRAWING MODEL 405
COMPACT FLOWMETER
2/24/14JSDSI1051961AQ
REMOVE BETA CALLOUT FROM NOTE 6
DIRECT MOUNT TYPE
CONNECTION OPTIONS
CONT'D
TEMPERATURE
HOUSING
TEMPERATURE
PROBE (RTD)
2X
GASKETS
ALIGNMENT
RING
3051SMV
TRANSMITTER
SHOWN
4X
NUTS
4X
STUDS
D3 DIRECT MOUNT OPTION
W/ TEMP (405A)
ALIGNMENT
RING
4X
NUTS
4X
STUDS
2X
GASKETS
RTD
CLAMP
TEMPERATURE
PROBE (RTD)
3051SMV
TRANSMITTER
SHOWN
D3 DIRECT MOUNT OPTION
W/ TEMP (405C/P)
COPLANAR/TRADITIONAL
MOUNT ADAPTER PLATE
2X
GASKETS
2X
GASKETS
A3 OPTION COPLANAR/TRADITIONAL
MOUNT ADAPTER (405C/P)
3X B31.X VALVE
LOCK MECHANISM
3X B31.X GRAFOIL
PACKING VALVE
B31.1 & B31.3 (2010ed.)
CODE CONFORMANCE
VALVE OPTION (ALL)
9.
