6.4 Reader
Proximity and keypad readers are supplied with a limited cable. The color of
the cable covering represents the cable’s function.
When extending cable distance be careful w it h the color of the cable cover.
The distance is limited by the Wiegand standard.

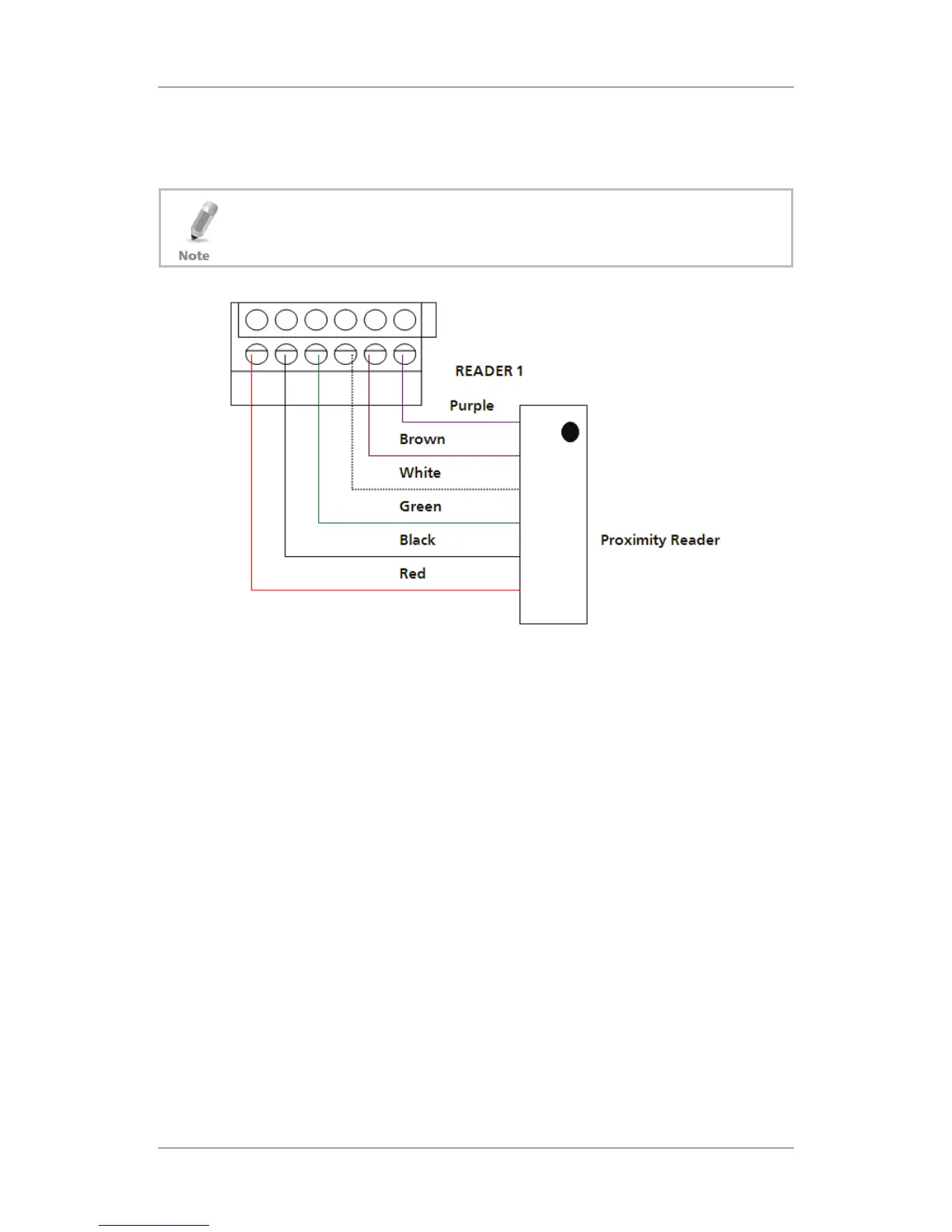

Figure 10: Reader Cable Coloring
Key:
+V Red
(-) Black
D0 Green
D1 White
G.LED Brown
Tamper Purple
