Connecting between MD-N32 and AC-215
AC-215 Installation Manual 33

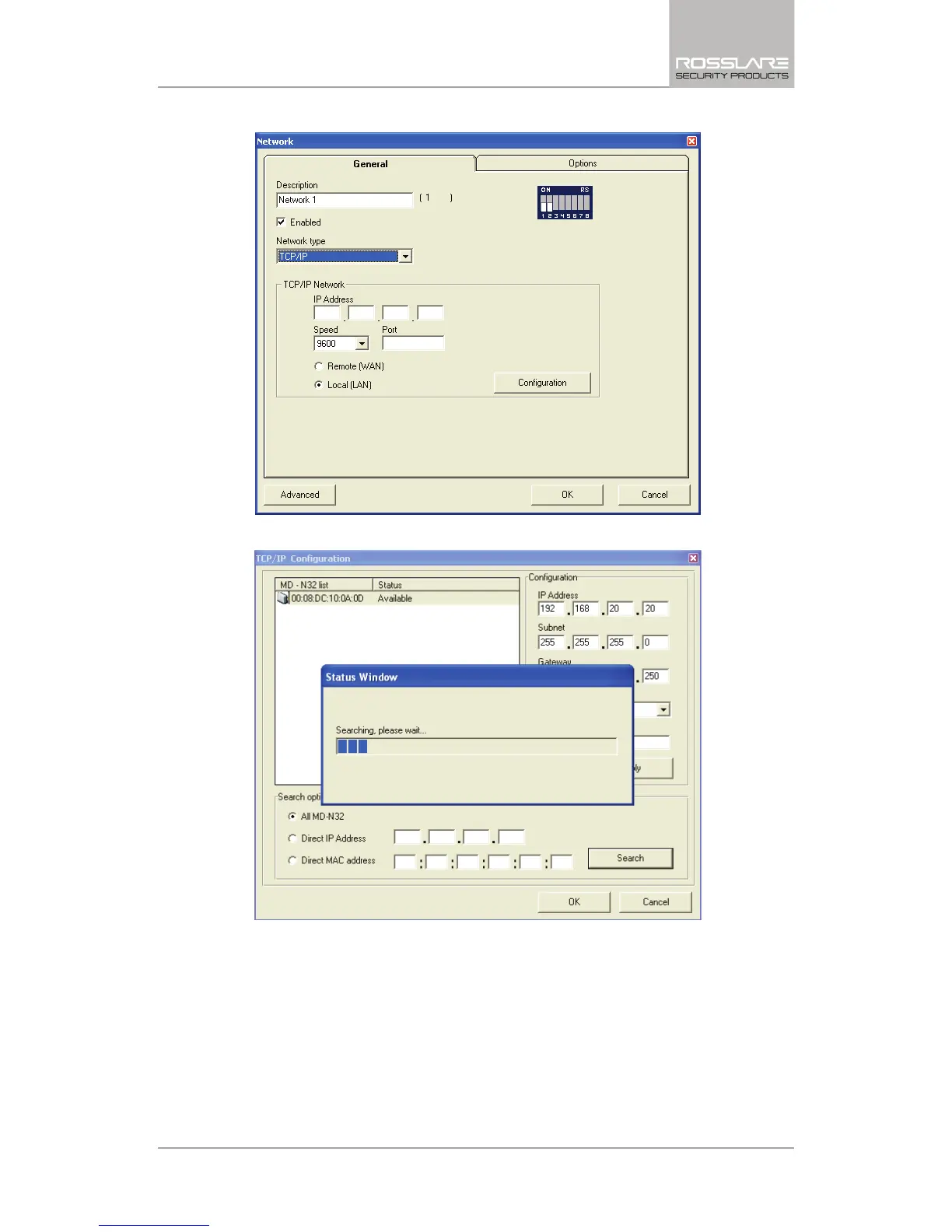

The network type should be selected as TCP/IP.
2. Click the configuration tab and wait until "searching" is complete.
3. Click OK.
4. Select the suitable MAC address from the MD-N32 list. The MD-N32's
MAC address should be labeled on the MD-N32's box.
5. In the Configuration area, type the IP Address and Subnet that the
network administrator supplied you.
6. In the Port field, enter 1000.
7. In the Speed area, select the speed of your serial connection (9600/19200/
38400/57600).
