3.1 Inputs Wiring – Non-Supervised Inputs

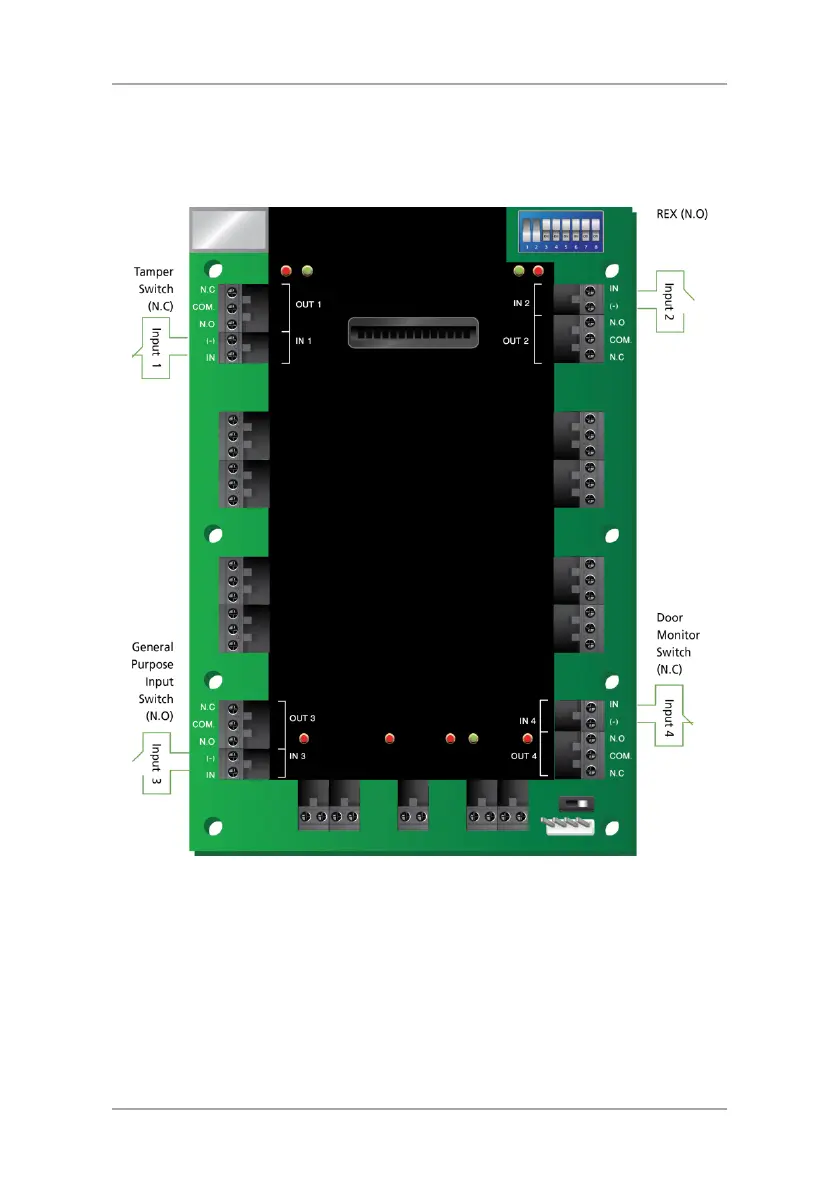

Figure 3 presents a detailed view of the non-supervised inputs and their
connection options.
Figure 3: Inputs Wiring – Non-supervised Inputs
