AC-425 Panel Setup
18 AC-425 Hardware Installation and User Manual
3.5 AC-425 Wiring Communications

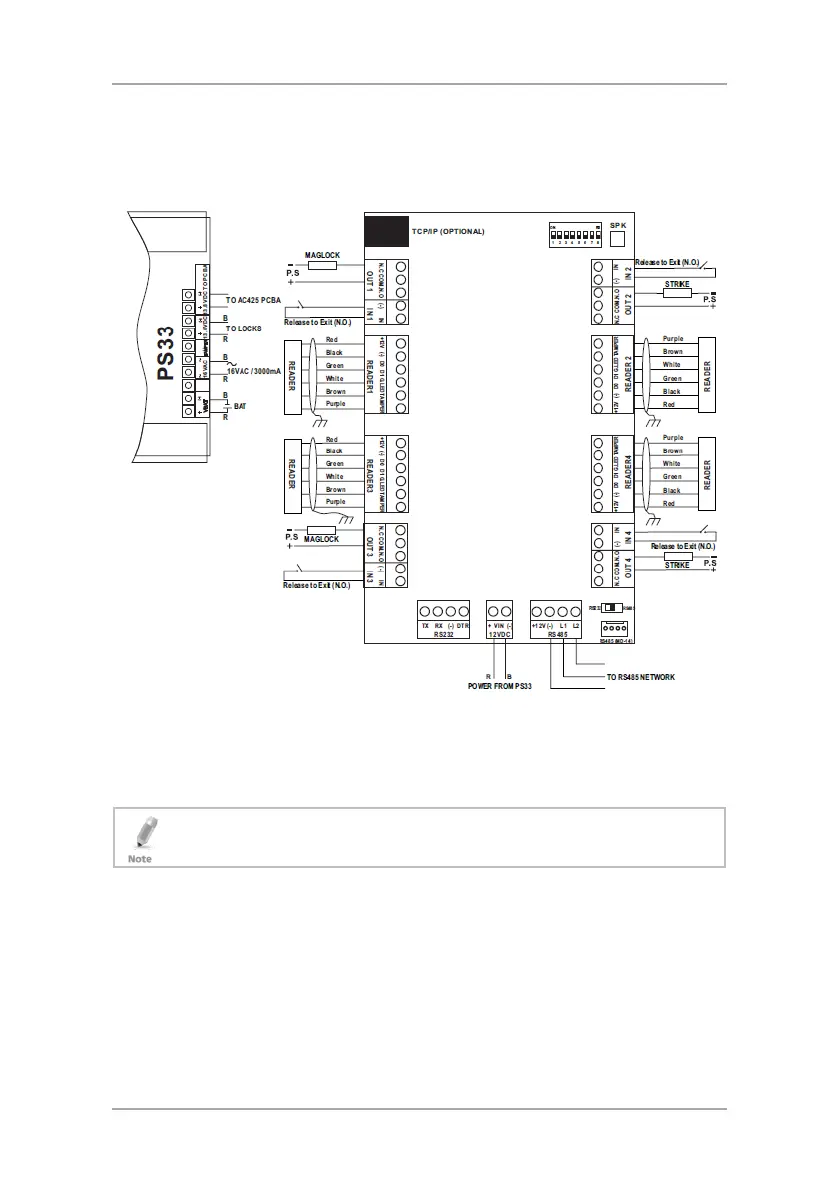

Figure 7 presents a detailed view of the access control panel with all it wiring
communications.
Figure 7: AC-425 Wiring Communications
3.6 Readers
Proximity and keypad readers are supplied with a limited cable. The color of
the cable cover represents the cable’s function according to Wiegand
standards (Figure 8).
When extending the cable distance, be careful with the color of the cable cover.
Refer to the reader specifications for the maximum cable length (typically 150
m with an 18 AWG cable).
