3.1.2 L-Shaped Stand Bracket Top-Loaded
In this method, the L-shaped stand pole should have a diameter of between 60
to 80 mm (2.4 to 3.1 in.) and a height of 4.2 m (13.8 ft). The pole should be
made of stainless steel with the thickness of at least 1.2 mm (0.05 in.).
Use the bracket contained in package box to mount the AY-U920BT reader to
the rail near the center of the lane (Figure 2).

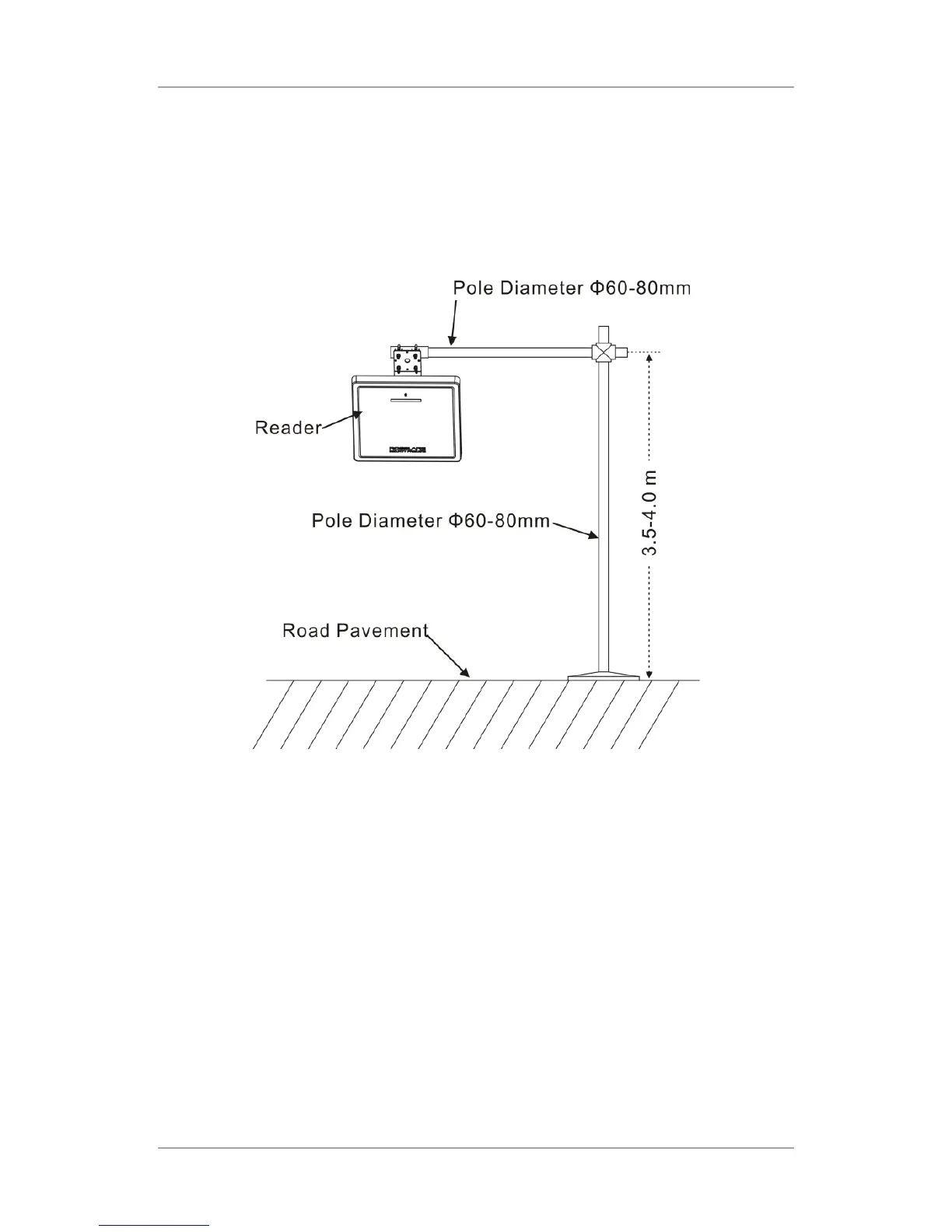

Figure 2: L-shaped Stand Bracket Loaded
Adjust the height between the rail and the ground to between 3.5 to 4.0 m
(11.5 to 13 ft), depending on the height of vehicle.
