Mounting
AY-U920BT-US Installation and User Manual 11
3.1.3 Adjusting the Azimuth Angle of Antenna
The angle of inclination with the ground plane of the antenna should be
approximately 60° to 75° (Figure 3), while the deviation angle of the antenna
should be biased towards the lane direction (Figure 4).

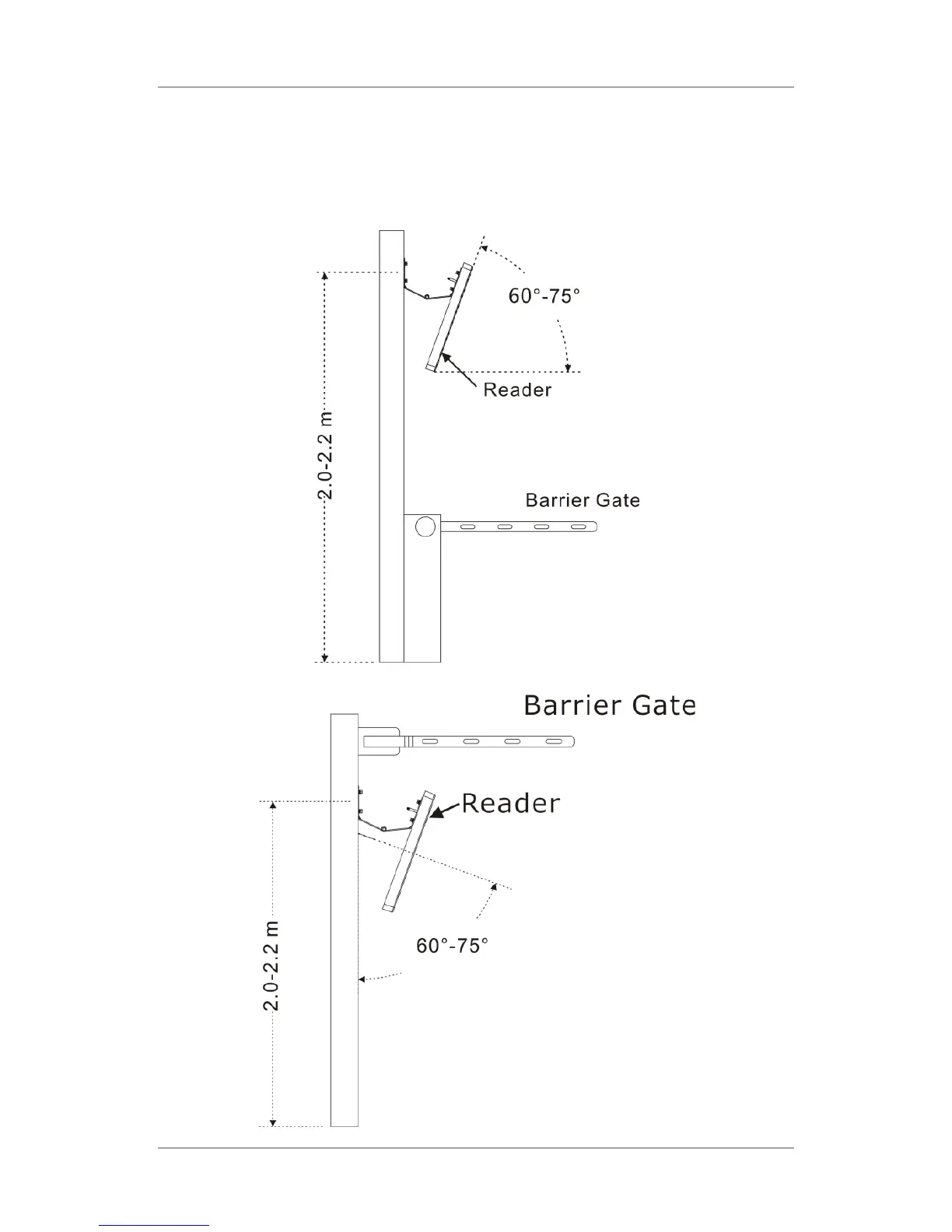

Figure 3: Antenna Angle Side View
Figure 4: Antenna Angle Top View
