Installation
AYC-F/Gx4 Series Installation and Programming Manual 13
3. Installation
Installation of an RFID reader adjacent to metallic surfaces
might alter the reader’s specifications. To diminish this
interference, use a plastic spacer when mounting the reader.
3.1 Mounting
Before starting, select the location to mount the unit. This location
should be at shoulder height.
1. For wall mounting, use the included mounting template as a
guide for drilling holes for mounting screws and wiring (Figure 1).
For US Gang Box mounting, no drilling is necessary.

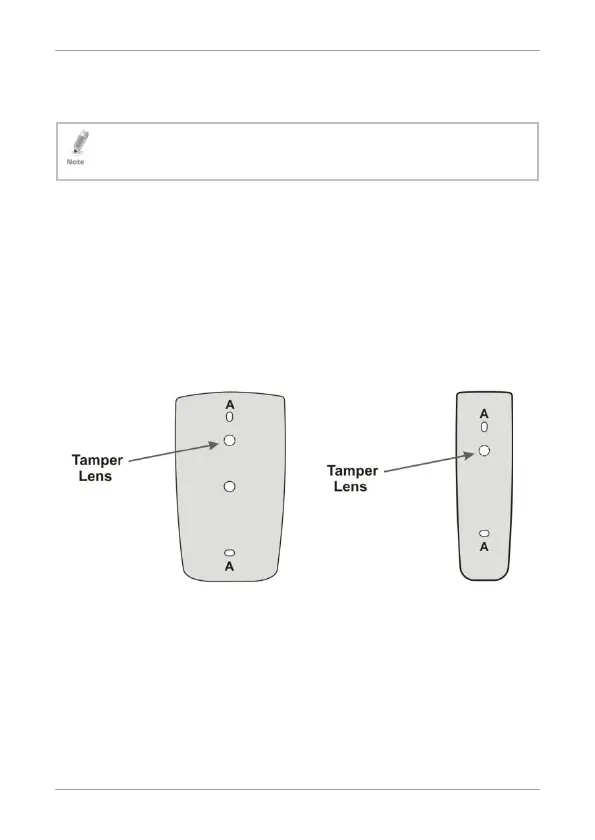

Figure 1: Drilling and Mounting Template
AYC-Fx4 AYC-Gx4
2. Insert the wall plugs into both mounting holes.
3. Drill a 10-mm (7/16”) hole for the cable. If the surface is metal,
place a grommet or electrical tape around the edge of the hole.
4. At the bottom of the unit’s case, remove the screw.
5. Carefully remove the snap-off front cover of the unit to reveal the
screw holes.
