Reader Operation
26 AYC-F/Gx4 Series Installation and Programming Manual
If the entry of the digit keypad PIN code is disrupted and a number
key or # is not pressed within 5 seconds, the keypad clears the PIN
code entry buffer, generates a medium length beep, and is ready to
receive a new keypad PIN code.
4.2.4 Selecting Proximity Card Transmission Format
There are three proximity card transmission formats.
To select the proximity card transmission format:
1. Enter Programming mode.

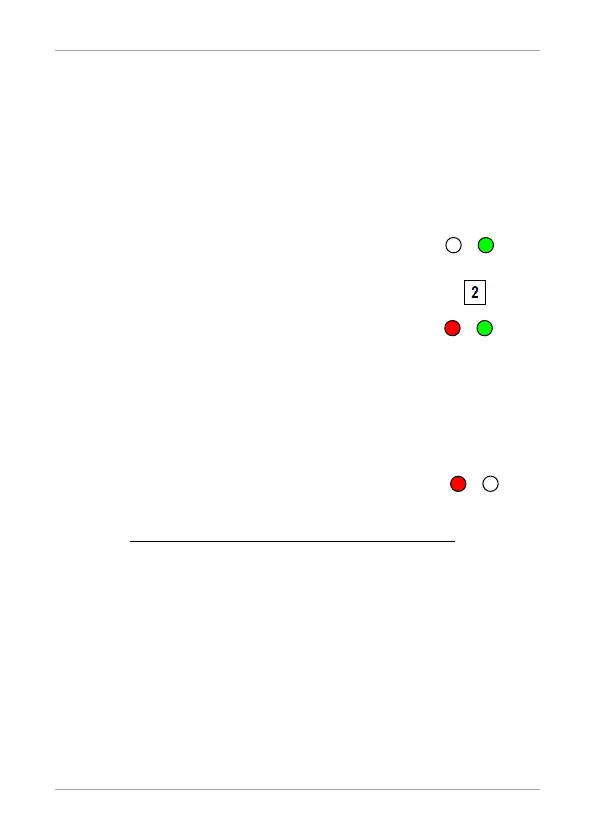

2. Press 2 to enter Menu 2.
The left LED turns red.
3. Enter one of the following codes:
1 – Wiegand 26-Bit
2 – Clock & Data
3 – Wiegand Card + PIN
You hear three beeps.
The system returns to Standby mode.
4.2.4.1 "Wiegand Card + PIN" Transmission Format
This unique mode is intended to let host controllers get card and
keypad data simultaneously. This option overrules the selected
Keypad Transmission Format and sends the keypad data as described
below.
After a card is presented to the unit, the program LED starts to flash
in green and indicates that the unit is waiting for the PIN code. If the
entry of 1- to 5-digit keypad PIN code is disturbed and a number key
or # is not pressed within 5 seconds, the keypad clears the card buffer
and the PIN code entry buffer, generates a medium length beep, and
be ready to receive a new card.
