4. Reader Operation
The AYC-F/Gx4 series can function both as a reader and as a
controller. If the unit is connected to standard access controller, it
functions as a reader, indicated by one beep immediately after power-
on reset.
The use of a proximity card is for the AYC-F/G64 models only.
4.1 Standby Mode
The default mode of the reader is Standby mode. In Standby mode,
the unit is ready to receive data from a presented proximity card or an
entered PIN code.

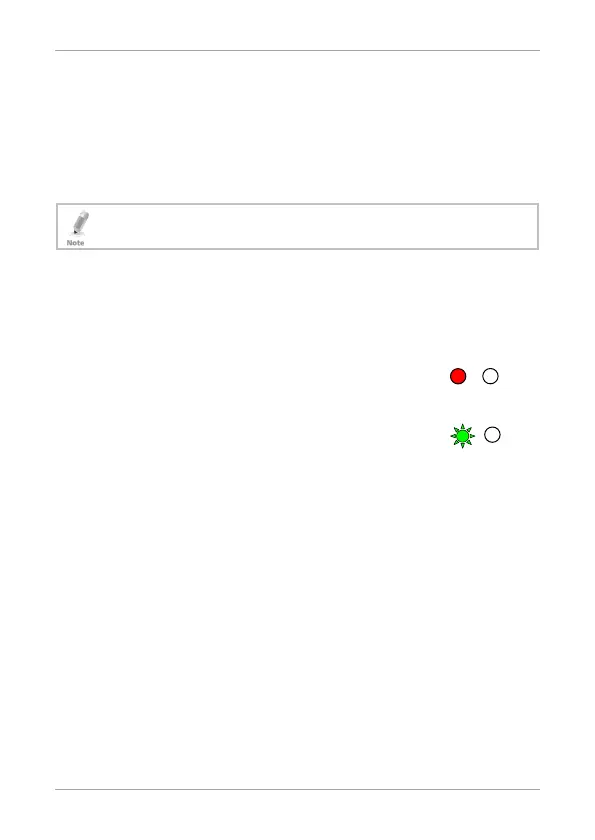

When the reader is in Standby mode, the left LED
is red and the right LED is off.
When a proximity card is presented or a keypad
entry is being transmitted, the left LED flashes
green.
Keypad data can be sent via one of eight keypad transmission formats
(see Section 4.2.3).
Proximity cards presented to the reader are always sent in either
Wiegand 26-Bit, Clock & Data or, Wiegand Card + PIN format (see
Section 4.2.4).
4.2 Programming as a Reader
Programming is done solely via the unit's keypad driven Programming
Menu System. During the manufacturing process, certain codes and
settings are pre-programmed. These settings are called the default
factory settings.
Table 3 shows the names of all the reader programming menus.
Default factory settings are marked by a "*" sign.
