17
I
I
.

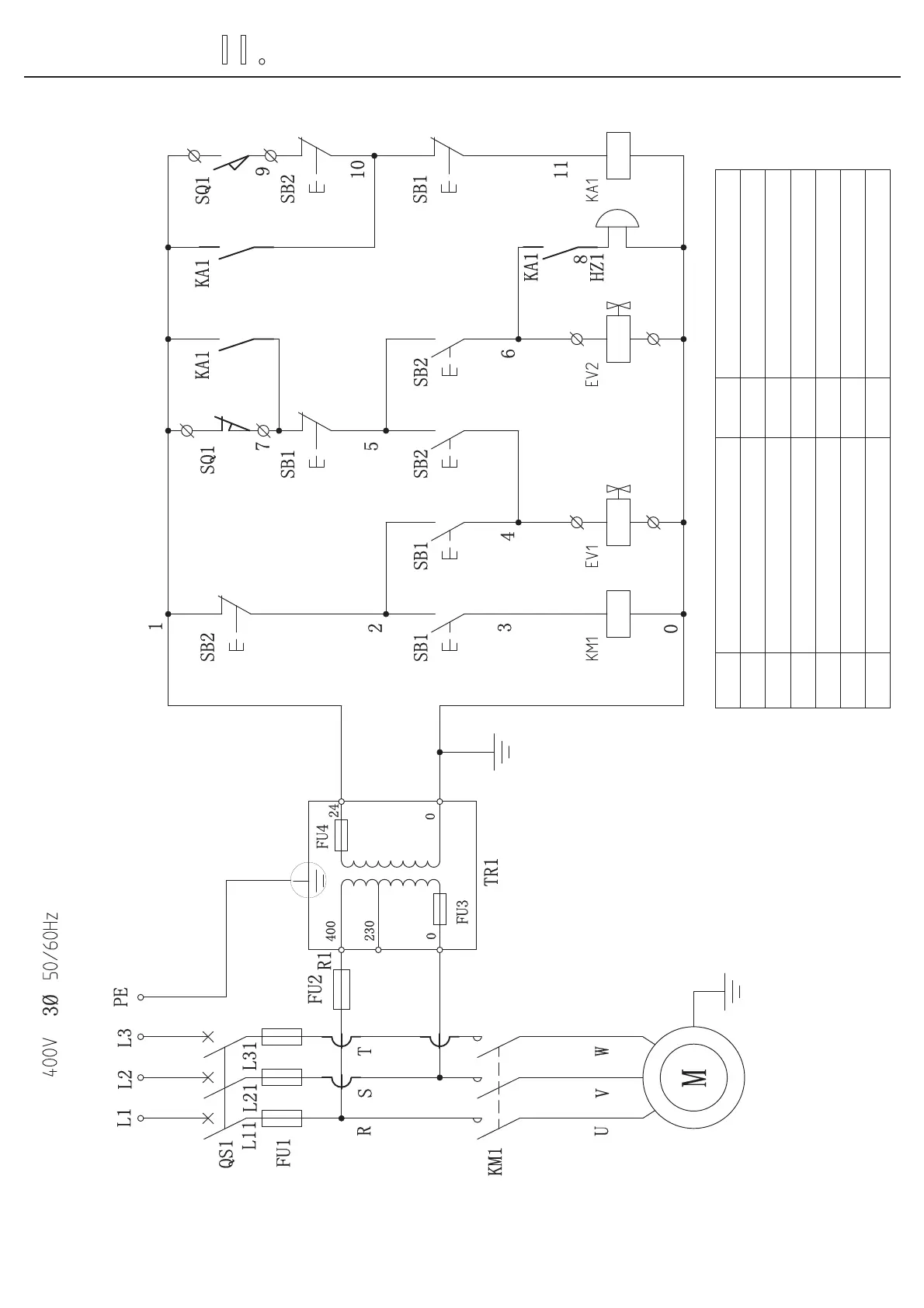

Electric wiring diagram
QS1
Power switch
SB1
Raise button
FU1
Fuse 16A
SB2
Lower button
FU2
Fu
se 2A
HZ1
Bu
zzer
TR1
Tra
nsform
er
EV1
So
le
noid
valve
KM1
Co
ntactor
EV2
Solenoid valve
KA1
Intermediate relay
SQ1
Proximity switch (Low)
FU3
Fu
se 1A
FU4
Fu
se 3A
19
21
Table of Contents
Default Chapter
4
Table of Contents
4
1 Packing, Transport and Storage
5
Packing
5
Lifting and Handling
5
Storage
5
Stacking the Packs
5
Opening
5
2 Introduction
6
Caution
6
Conservation of the Manual
6
Laws
6
3 Description of the Machine
6
Structure
6
Lifting Unit
7
Safety Devices
7
Intend Use
7
Incorrect Use, Incorrect Behavior
7
Internal Accident, Health and Safety, and Environmental Information
7
4 Technical Specifications
8
Technical Data
8
Motor
8
Hydraulic Control Unit
8
Oil
8
5 Safety
9
Warning
9
Safety Devices
10
6 Installation
11
Warning
11
Attention
11
7 Operating Instructions
12
Before Loading
12
Loading
12
Raise Lift (See Figure11)
12
Before Lowering Lift
12
To Lower Lift (See Figure 11)
12
Unloading
12
8 Maintenance
14
9 Commissioning
15
Check Operation
15
Test the Hydraulic System
15
10 Disposal
15
Environmental Procedures for Disposal
15
Packaging
15
Oils, Grease, and Other Chemical Substances
15
Metals / Electronic Waste
15
11 Trouble Shooting
16
Annex
17
Hydraulic Circuit Diagram
18
Electric Wiring Diagram
20
Parts Break down
21
Mobile Kit
28
Spare Parts List
29
