Rotary 100 Series User Manual

25
V. Mobile Kit I
noitpircseD .oNtraP Qty
1 leehw kcaB 5009-10JW-KM 1
1 revel dnah tnorF 5009-20JW-KM 2

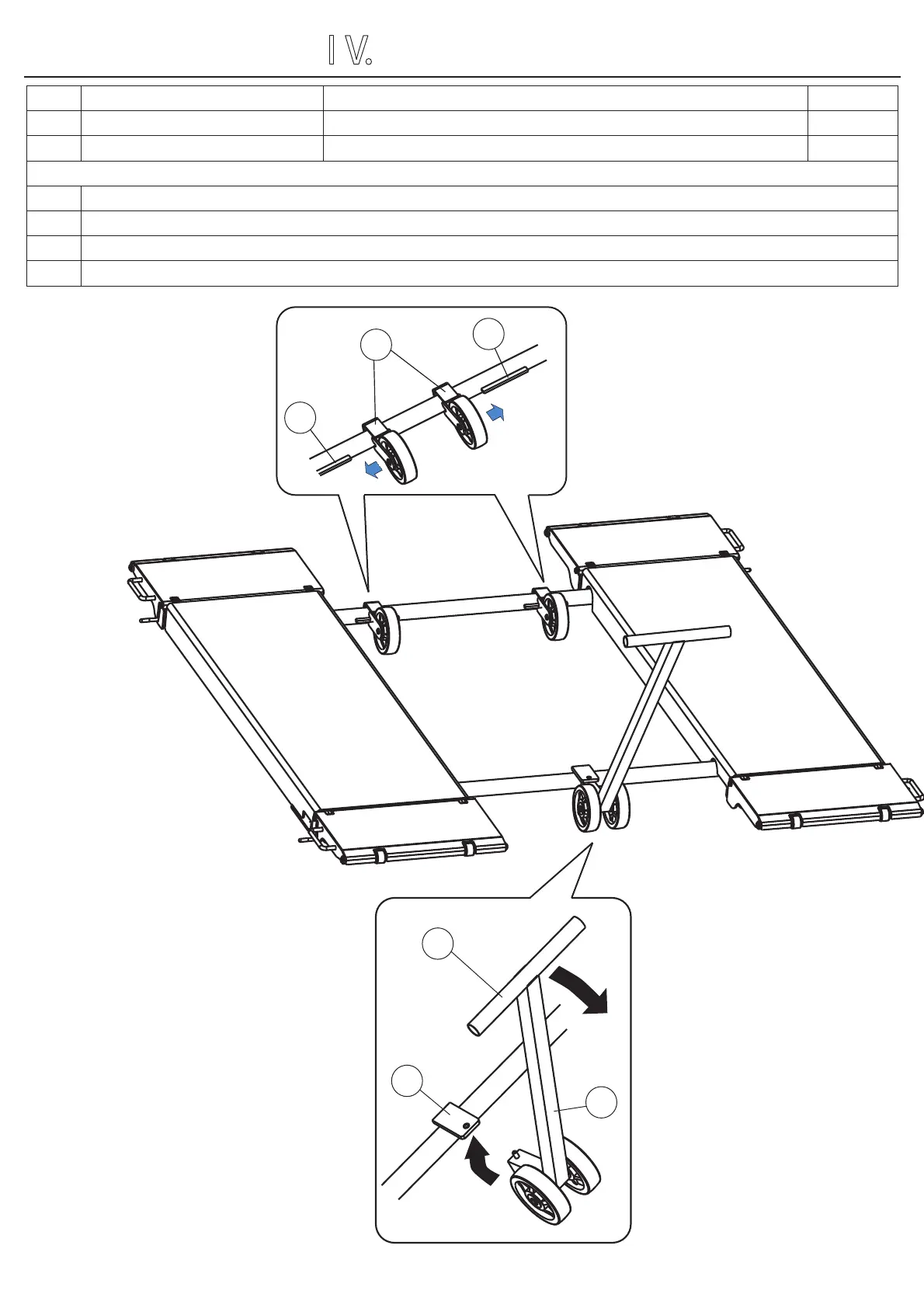

Fitting the wheels for lift translation
1 Lift the platform to approx. 500 mm.
2 Fit the two wheels (1) into the special brackets (A) as shown.
3 Lower the lift to the ground.
4 Insert the shaft (2) in the support as shown, move grip (C) in the direction arrowed.
1
2
A
B
C
A
