Rotary SM30 - Page 10

10
Black
White
Green
Connect supply to wires in box as
per Fig. 18. Attach ground wire to
screws provided.
208-230V 60Hz
Single Phase
Attach ground wire here.
Attach black wire
to one motor wire.
Attach white wire
to one motor wire.
Note: Motors utilizing 3 phase current available. Refer to wiring
drawing in 3 phase power unit carton.
IMPORTANT
Use separate circuit for each power unit.
Protect each circuit with time delay fuse or circuit breaker: single
phase -30 amp.; 3 phase (230v) -15 amp.; 3 phase (460v ) -8.75
amp, Fig. 18 and Fig. 21. Wiring must comply with local electrical
codes.
Note: Motor CAN NOT be run on 50Hz. line without a physical
change in the motor.
WARNING
Risk of explosion. This equipment has
internal arcing or sparking parts which should not be exposed to
flammable vapors. It should not be located in a recessed area or
below floor level.
NEED
ASSISTANCE?
CALL:
1-800-445-5438
OUR CUSTOMER
SERVICE
DEPARTMENT
WILL BE GLAD TO
HELP.

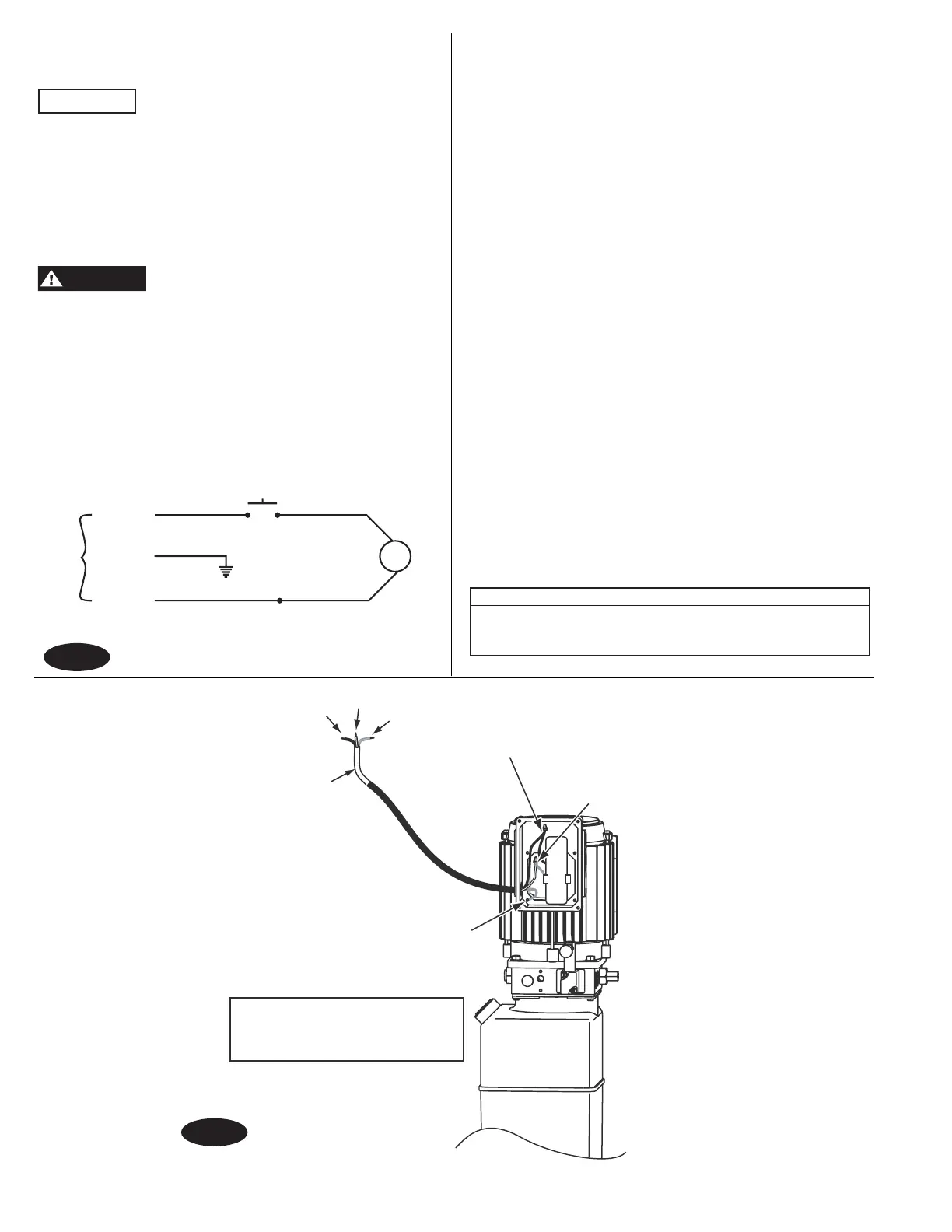

Fig. 18
Fig. 19
MOTOR OPERATING DATA - SINGLE PHASE
LINE VOLTAGE OF POWER CO. RUNNING MOTOR VOLTAGE RANGE
208V - 230V 60 HZ 197V - 253V
Motor Operating Data Table
Wiring Diagram
M
230
V.
60
Hz.
1Ø
RAISE
SWITCH
Green
Black
White
Black
White
