Rotary SM30 User Manual

3

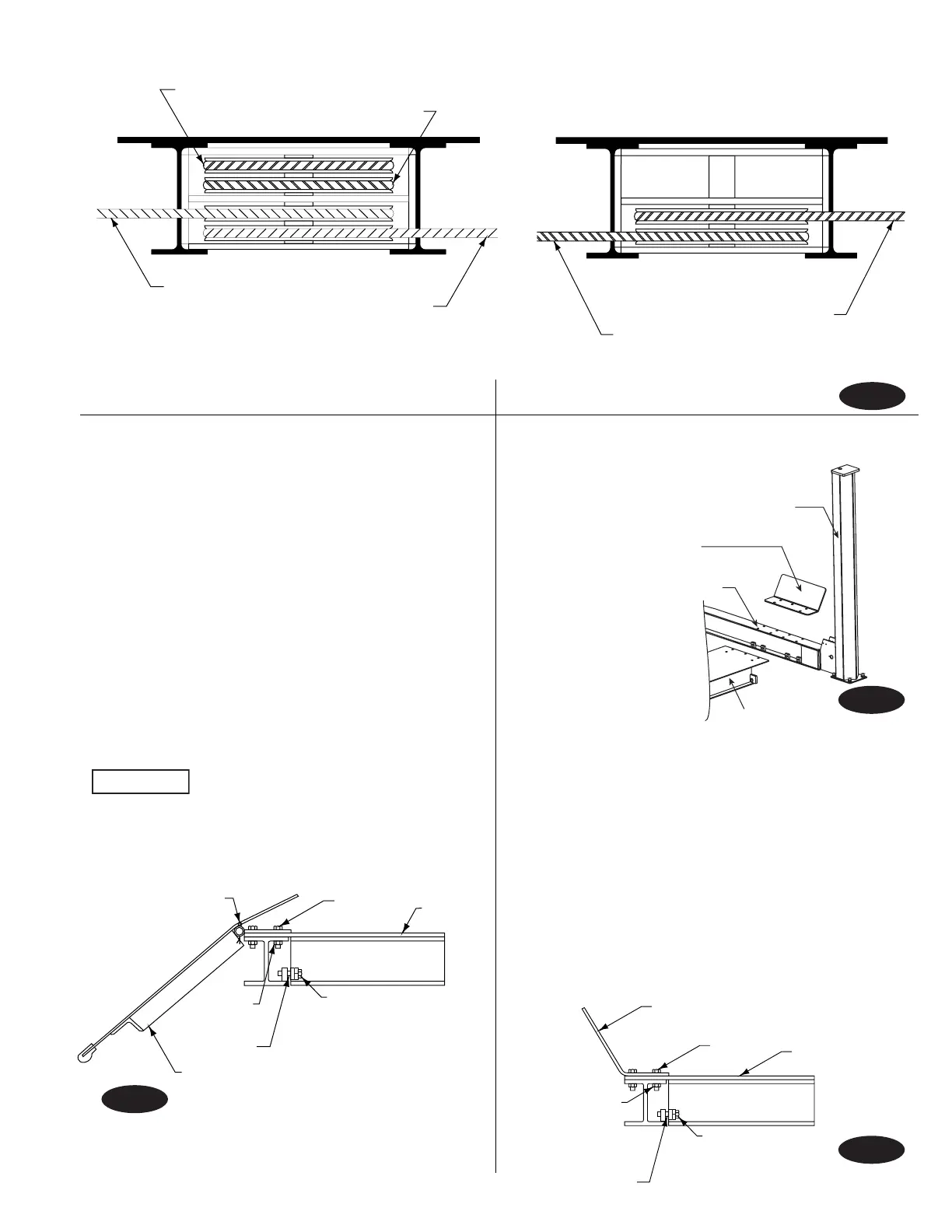

Cable Seating in Sheave Grooves
Rear
(Viewed from rear)
Fron
t
(V
iewed from front)
Right Rear
Cable (#4)
Left Rear
Cable (#3)
Right Front
Cable (#2)
Left Front
Cable (#1)
Left Rear
Cable
(#3)
Right Rear
Cable (#4)
D. Lay right runway in place on yoke. Slide right runway toward
outside of lift until holes in yoke and runway line up, Fig. 4.
Hold runway in place and bolt on ramp/chock and wheel
stops to runway using ten
5
/
8
” x 2
1
/
2
” bolts and flange nuts.
Square up yokes with runways using four
3
/
4
”-10NC x 2” lg.
bolts,
3
/
4
” flat washers,
3
/
4
” lock washers, and shims. Ramp/
chocks go on rear, Fig. 5. and Fig. 6. Repeat for left runway.
E. Insert each end of the left runway’s
1
/
4
” air line into the Tee’s
connecting the locking latch air cylinders in each yoke, Fig. 7.
E. Maximum shim thickness of 2” is possible by using shims
and anchors provided with lift. If more shimming is required,
consult factory for different shim package including longer
anchor bolts.
4. Runway and Yoke Assembly:
A. Determine direction of approach in bay.
B. Position left runway in bay with hydraulic cylinder hose
connection to rear of bay. Cables and sheaves are pre-
assembled in runway. Runway needs to be up off floor so
shipping restraints can be removed from cable ends, air
and hydraulic lines, and cylinder rod. Pull cables, air and
fluid lines out for assembly. Make sure cables are in proper
sheave grooves, Fig. 3.
C. Position front and rear yokes at respective ends of
runway, Fig. 1. Feed cable ends through yoke end, Fig. 4. Do
not assemble sheaves in yoke ends at this time.
IMPORTANT
Be sure cables are not crossed inside yoke.
Fig. 3
Fig. 5
Fig. 4
Fig. 6
Feed Cable Ends Through Yoke End
Right Runway
Permanent
Wheel Stop
Alignment Holes
For Runway Adjustment
Right Front Column
Ramp/Chock
Flange
Nuts
Cotter Pin Should Be
On Outside Of
Runway
Bolts
Runway
3/4" x 2" lg. Bolts
3/4" Lock Washers
3/4" Flat Washers
Shim
Ramp/chock
Wheel Stop
Flange
Nuts
Permanent
Wheel Stop
Bolts
Runway
3/4" x 2" lg. Bolts
3/4" Lock Washers
3/4" Flat Washers
Shim
