6

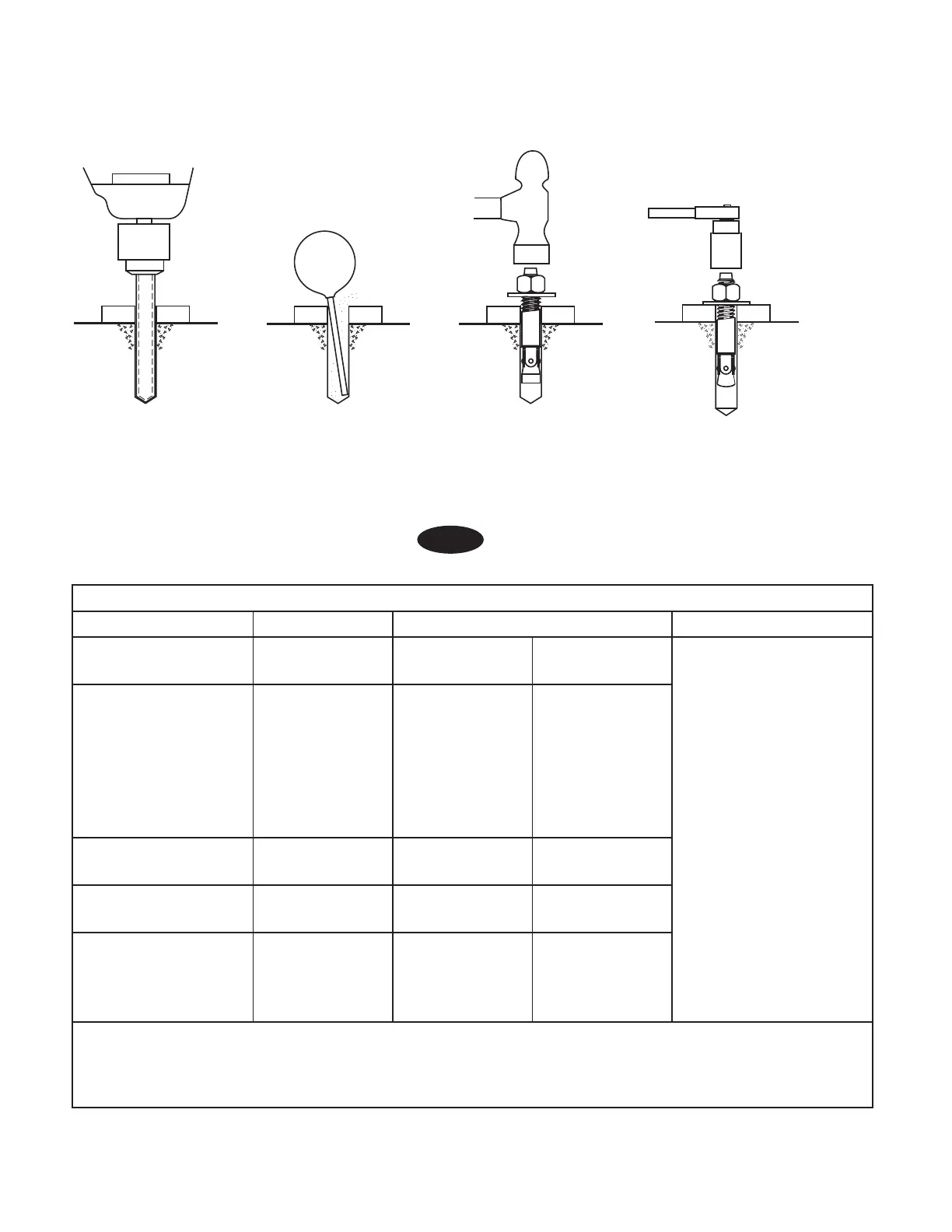

Fig. 11
6. Concrete and Anchoring:
Run nut down just
below impact section
of bolt. Drive anchor
into hole until nut and washer
contact base.
Clean hole.Drill holes using 5/8” car-
bide tipped masonry drill
bit per ANSI B212.15-1994
(R2000)
Tighten nut with
Torque wrench to
60 ft.-lbs.
CONCRETE AND ANCHORING REQUIREMENTS
STANDARD ANSI/ALI ALCTV IBC 2006, 2009, 2012 SEISMIC
Minimum Floor Thick-
ness
4-1/4 INCHES 4-3/8 INCHES 5 INCHES
Varies by location consult
with your structural engineer
and manufacturer’s repre-
sentative.
Anchor Hilti Kwik Bolt III*
5/8" x 4-1/4"
Hilti HIT-HY
150MAX-SD
Adhesive; Hilti
HIT-HY 150 MAX
Adhesive; HILTI
HIT-RE 500-SD
Adhesive
Hilti Kwik Bolt III
5/8" x 6"
Minimum Concrete
Strength
3000 PSI 3000 PSI 3000 PSI
Minimum Anchor Em-
bedment
2-3/4 INCHES 3-1/8 INCHES 3-1/8 INCHES
Minimum Distance to
Concrete Edge, Crack,
Expansion Joint, Aban-
danoned Anchor Hole
4-1/2 INCHES 3-1/8 INCHES 2-1/4 INCHES
*The supplied concrete fasteners meet the criteria of the American National Standard
“Automotive Lifts - Safety Requirements for Construction, Testing, and Validation” ANSI/ALI ALCTV-2011, and the lift
owner is responsible for all charges related to any additional anchoring requirements as specified by local codes.
Contact customer service for further information at: 800.445.5438
