Rotary SM30 - Dimension Verification and Anchoring

5

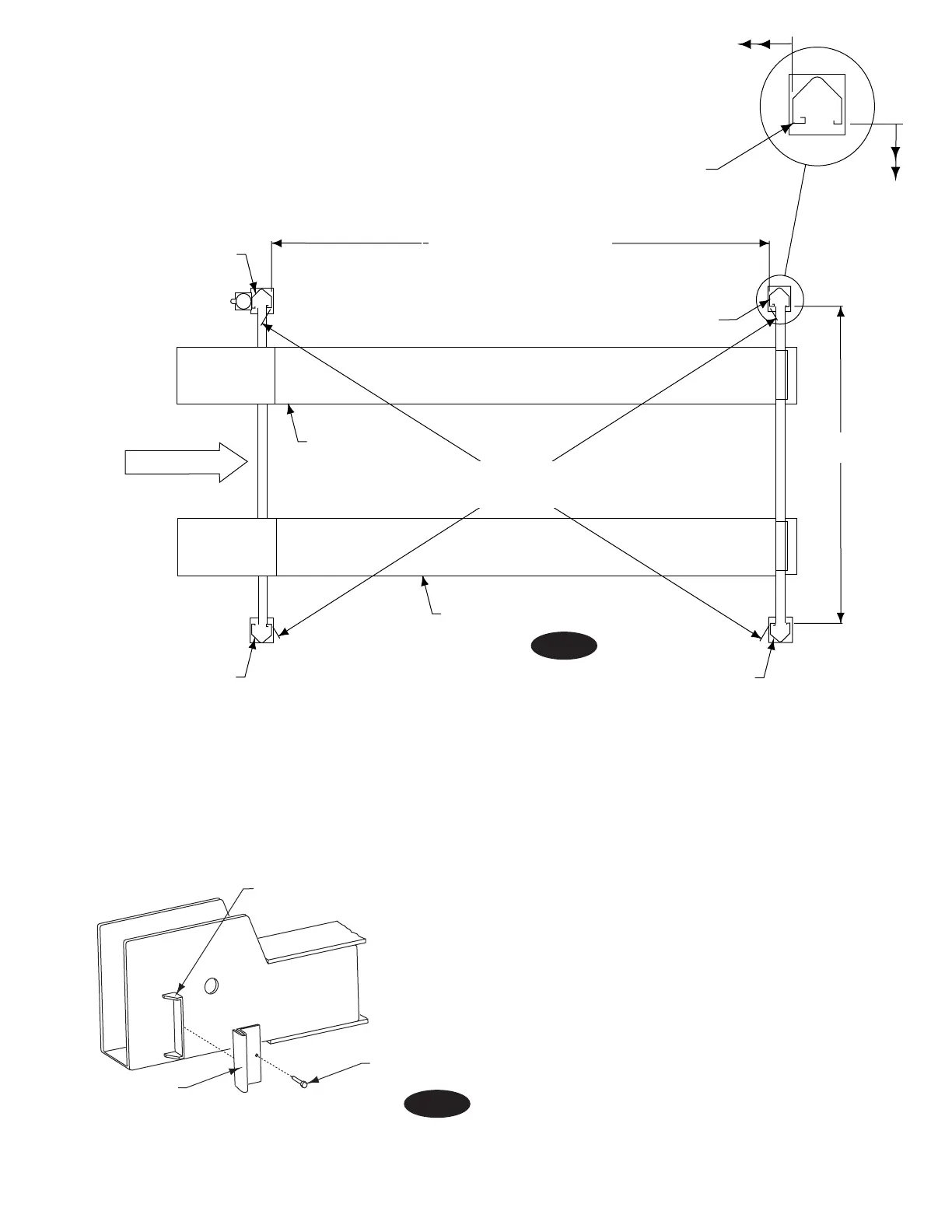

Fig. 9
APPROACH
Left Runway
Right Runway
Right Front Column
Right Rear Column
Diagonals
Within
1
/
4
"
Between Columns
Power Unit Column
Left Front
Column
Double Return Bend always
to the Inside of Lift.
RFL25 ....... 177 1/8" Ref.
SM30S ........ 249 1/8" Ref.
SM30L ........ 285 1/8" Ref.
SM30EL......321 1/8" Ref.
133 1/4" Ref.
Check Lift Dimensions
Width and length measurements are made from column
sides, NOT column base plate. Diagonals are measured from
inside corner of column.
1
/
4
"
Tapping
Screw
Column Stop
Plastic Slider
Plastic Slider
Fig. 10
