ROTAX 125 MAX evo, Junior MAX evo, Mini MAX evo, Micro MAX evo

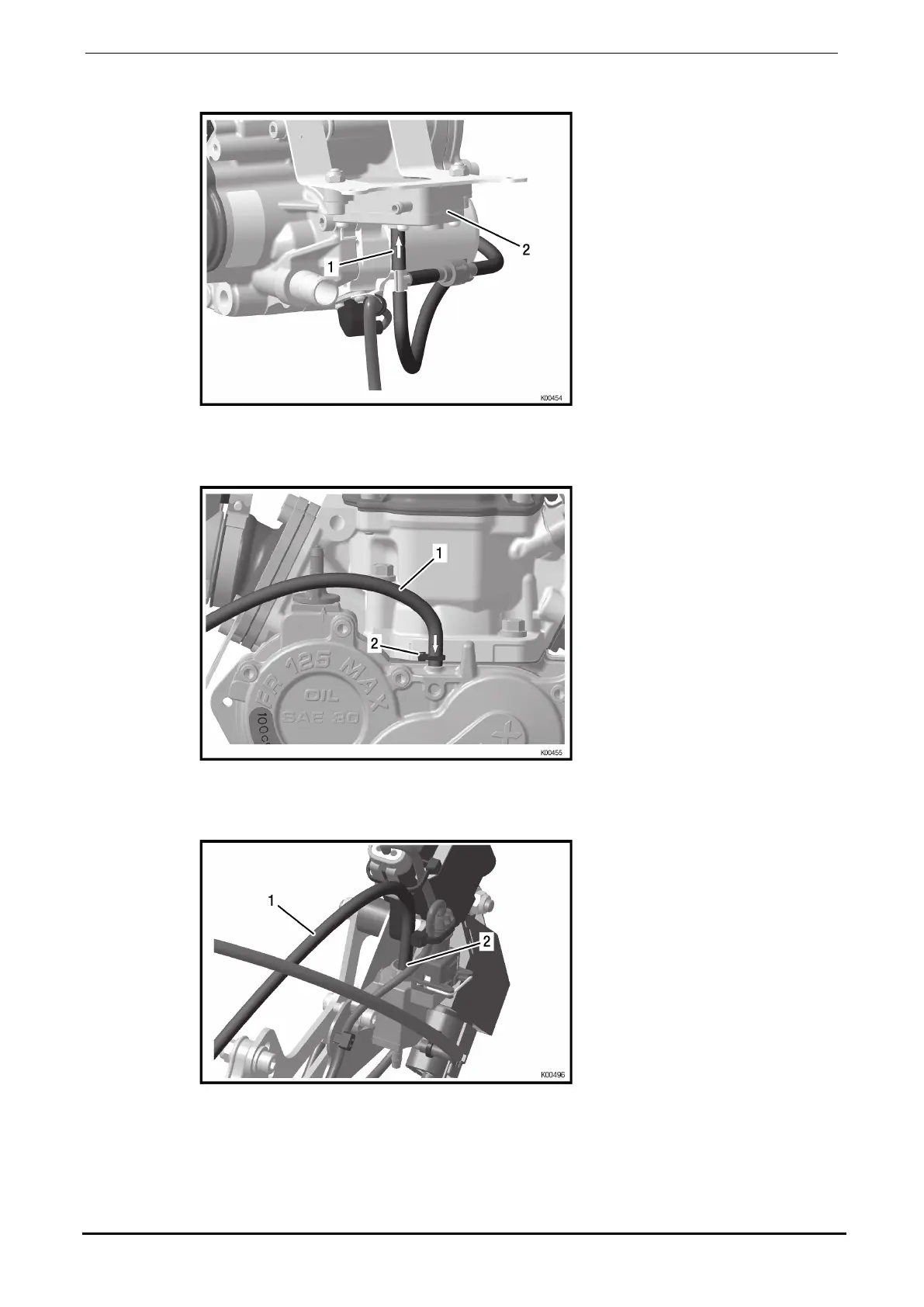

 Attach the end of the T-Fitting (pos. 1) to the fuel pump (pos. 2).
Fig. 37
 Attach the fuel line (pos. 1) to the impulse nipple on the engine housing and secure
with tie wrap small (pos. 2).
Fig. 38
 Attach the 420 mm pressure line (pos. 1) to the metal adapter of the magnetic valve
(pos. 2).
Fig. 39
Page 22/53 Edition 07/2016
