ROTAX 125 MAX evo, Junior MAX evo, Mini MAX evo, Micro MAX evo

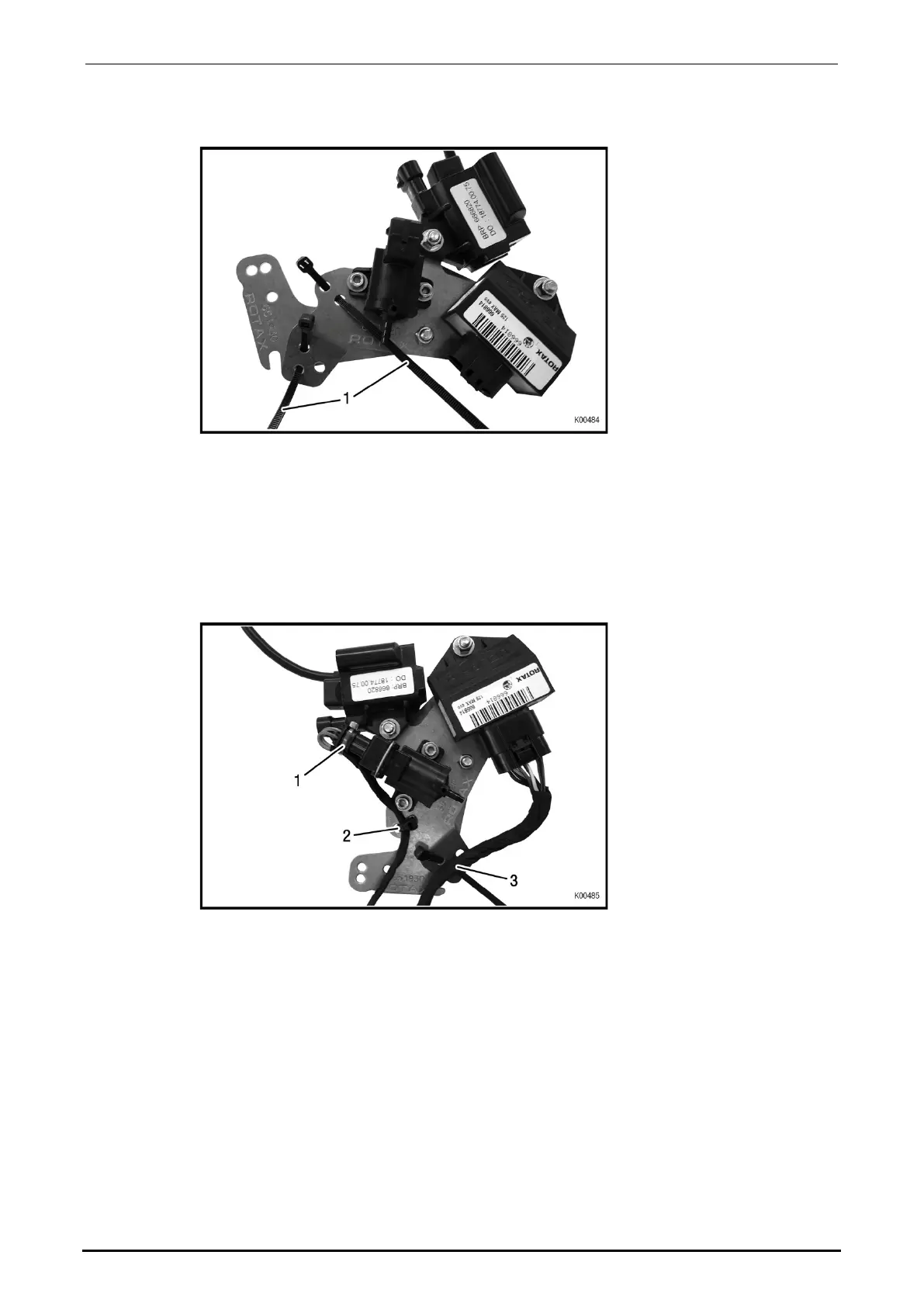

7. Montage des Kabelbaumes auf die Trägerplatte
Montieren Sie 2 Kabelbinder (Pos. 1) in korrekter Position. Siehe Bild 19.
Bild 19
Stecker am Magnetventil befestigen.
Hinweis: Kabelbinder (Pos. 1) ist bereits auf dem Stecker jedes Kabelbaums befestigt
(TNr. 666831). Wenn das Kabel verdreht ist, muss dieses vorsichtig in richtige
Position gedreht werden. Siehe Bild 20.
Kabelbinder (Pos. 2) befestigen. Das Kabel des Magnetventils darf nur mit diesem
Kabelbinder befestigt werden.
Stecker an ECU befestigen.
Bild 20
Kabelbaum (Pos. 3) positionieren.
Seite/Page 15/55
Ausgabe/Edition 07/2016
