3. INSTALLATION METHOD

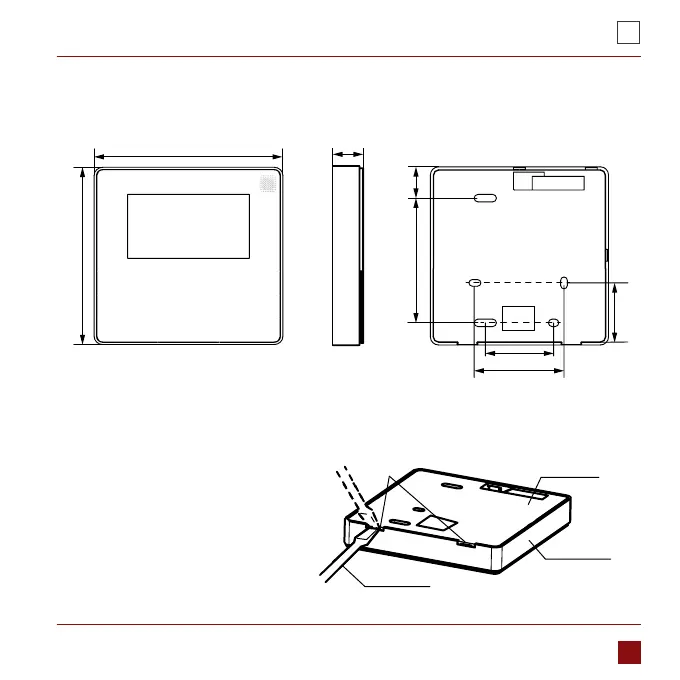

1. Wired remote controller structural dimensions
2. Remove the upper part of wired controller
• Insert a slot screwdriver into
the slots in the lower part of
the wired controller (2 places),
and remove the upper part of
the wire controller. (Fig.3-2)
19mm84mm
46mm
60mm
44mm
120mm
120mm
20mm
120mm
20mm
46mm
60mm
19mm
84mm
120mm
44mm
Buckling position
Back cover
Front cover
Straight head
screwdriver
Fig. 3-1
Fig. 3-2
