LOKA HAHB remote control
EN
56
Installation and user manual

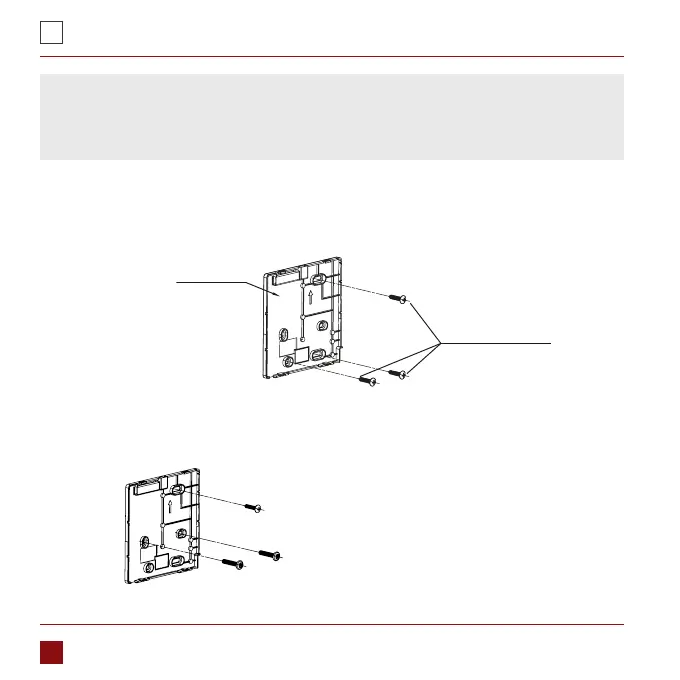

3. Fasten the back plate of the wired controller
• For exposed mounting, fasten the back plate on the wall with the 3 screws (M4×20)
and plugs. (Fig.3-3)
• Use two M4X25 screws to install the back cover on the 86 switch box, and use one
M3.9X25 screw to x to the wall.
Back plate
Screws (M4×20)
Tylna płyta
Wkręty (M4 × 20)
Screw hole xed on the wall, useone
φ3.9X25mm
Screw hole installed on 86 switch box, use two
M3.9X25mm
Fig. 3-3
Fig. 3-4
NOTE:
The PCB is mounted in the upper part of the wired controller. Be careful not to
damage the board with the slot screwdriver.
