rotork Master Station - Page 11

11
2. Know your Rotork Master Station continued

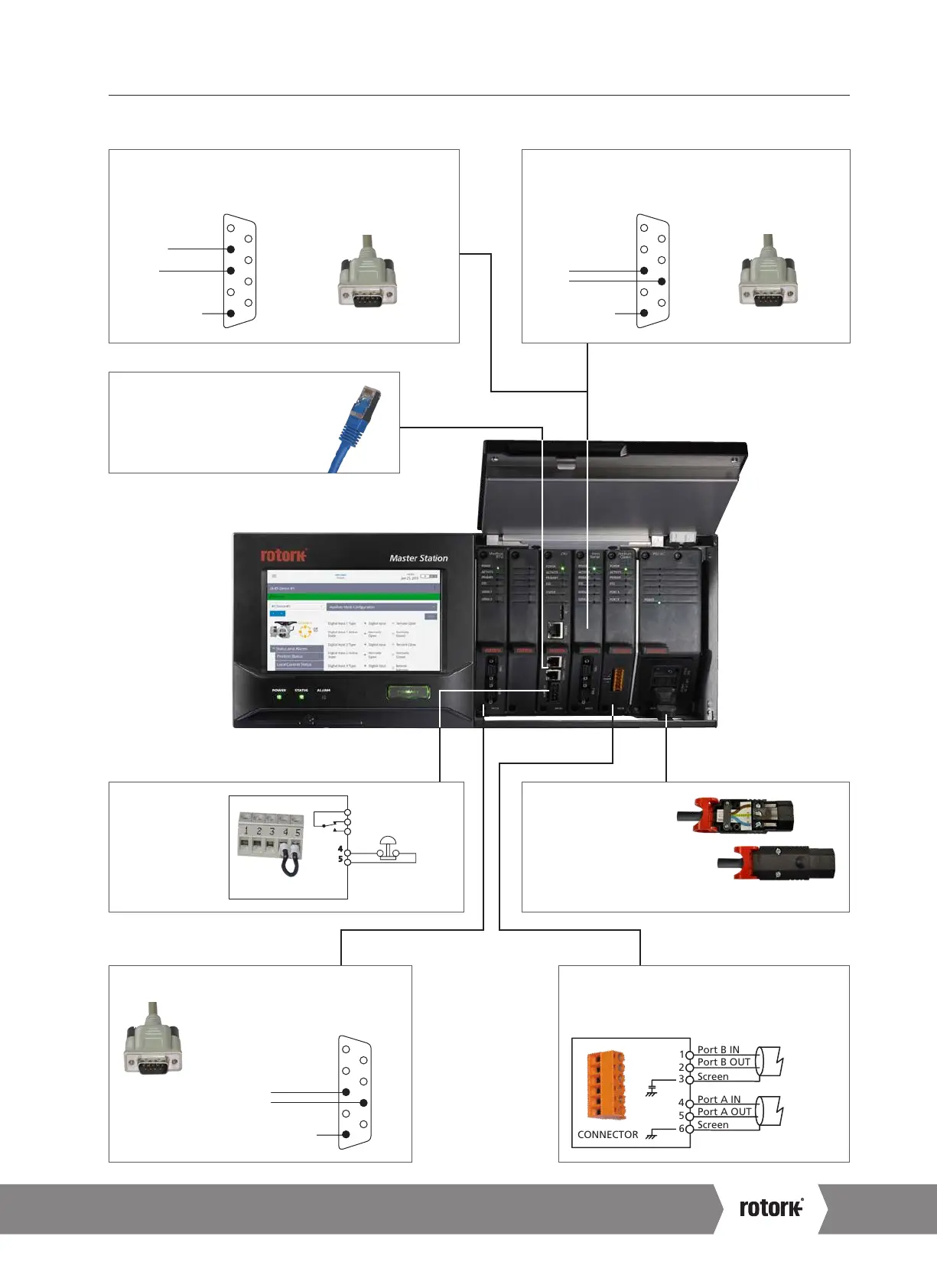

Dual Rotork Master Station
CONNECTOR
Modbus RTU
9-way Female D-type
RS-485 Connections
Signal Common
Data +
Data –
1
2
3
4
5
6
7
8
9
Host Connections
Field Connections
Ethernet
Connect to CPU Ethernet 1.
CPU Ethernet 2 is available for
redundancy (managed RSTP
switch required).
Alarm and ESD
Wiring as shown.
If ESD is not
required, fit a
link between
pins 4 and 5.
5
4
Alarm
Emergency
Shutdown
PS710 CONNECTOR
1
2
3
Mains Power
Connectors
Connect to PSU. Mains
power 100 – 240 VAC.
Protective Earth must be
connected to 'E'.
For RS-485 Serial Data
Connect to Host Serial 1.
9-way Female D-type
RS-485 Connections
Signal Common
Data +
Data –
1
2
3
4
5
6
7
8
9
Optional
For RS-232 Serial Data
Connect to Host Serial 2.
1
2
3
4
5
6
7
8
9
9-way Female D-type
RS-232 Connections
Signal Common
Data In
Data Out
Optional
Pakscan Classic Loop
Connect field wiring to
supplied P4720 connector.
Port A OUT
Port A IN
Screen
Port B OUT
Port B IN
Screen
5
4
6
2
1
3
CONNECTOR
1
6
