Roxell SparkCup - Replacing Sparkcup Cups and Valves; Small Cup Disassembly Guide; Medium and Big Cup Disassembly; Valve Replacement and Sealing

ROXELL --025 -- 0511
SPARKcup -- USER'S GUIDE -- E U G
6

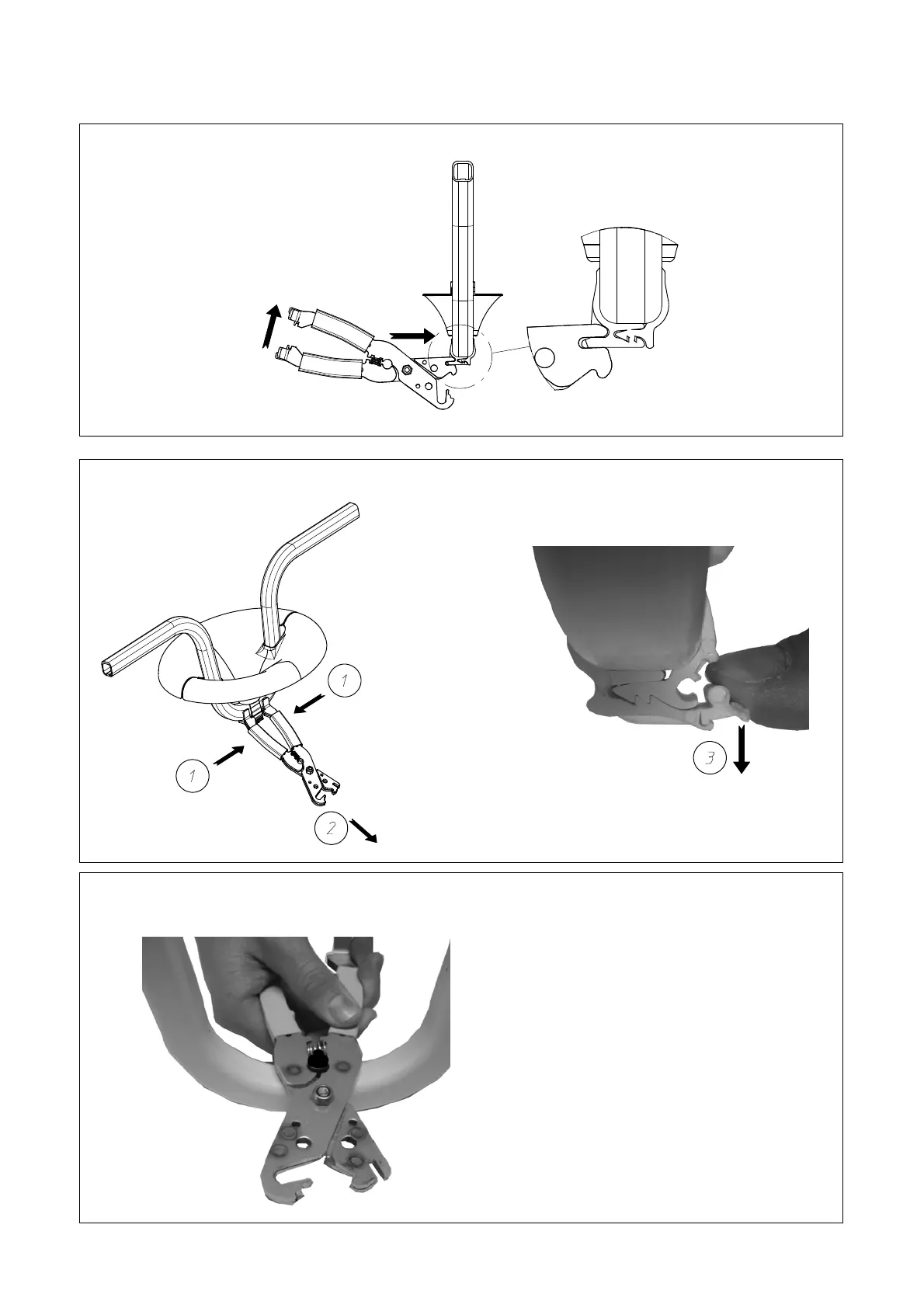

TO CHANGE CUPS/VALVES
TO DISASSEMBLE THE SMALL CUP
Remove the cup.
Figure 1.
TO DISASSEMBLE THE MEDIUM AND BIG CUP
12
Figure 2.
TO REPLACE THE VALVE
Remove the cup.
Take away the water pressure from the line.
Remove the valve manually or with the special
pliers.
Install a new sealing if necessary. Install a new
valve and replace the cup.
Figure 3.
