OPTIONAL : SEMI--AUTOMATIC FLUSHING
Figure 10.
Connect the end ball valves with a connector tube to the controlled cock.
The control box for semi--automatic flushing operates this cock.

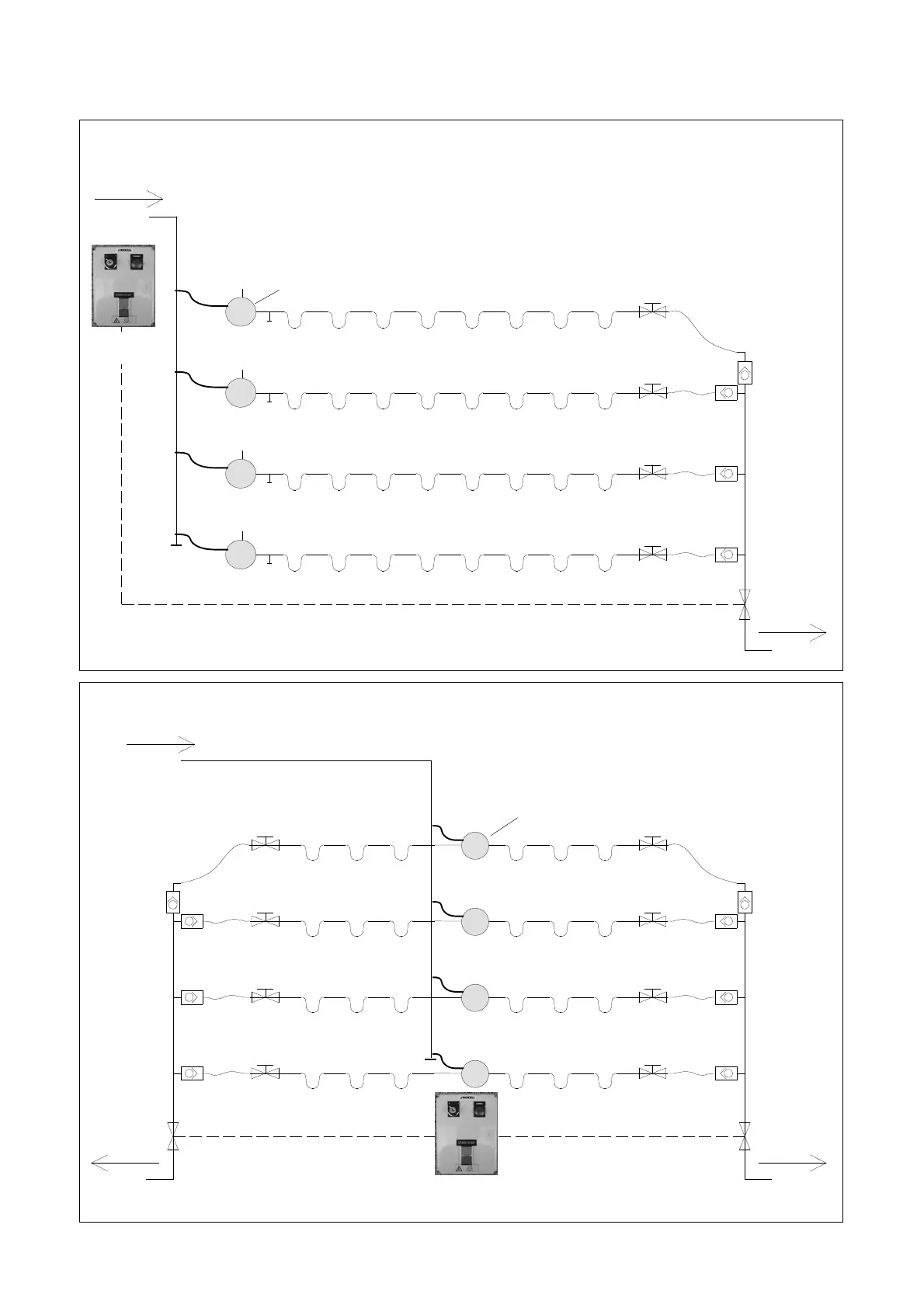

CONDUIT LAYOUT FOR SEMI--AUTOMATIC FLUSHING, FRONTAL PRESSURE REGULATORS.
Control
box 230V
Flush
IN
OUT
Pressure regulator
PR
PR
PR
PR
Figure 11.
Pressure regulator in the middle of the line :
maximum 2 lines can be flushed simultaneously.
CONDUIT LAYOUT FOR SEMI--AUTOMATIC FLUSHING, CENTRAL PRESSURE REGULATORS.
Flush
IN
OUT
Pressure regulator
Control box 230V
OUT
PR
PR
PR
PR
