Figure 15.
Pressure regulator in the middle of the line :
both collectors (at the beginning and at the end) are the same.
Attention!
Watch the right flushing direction when installing the valves.

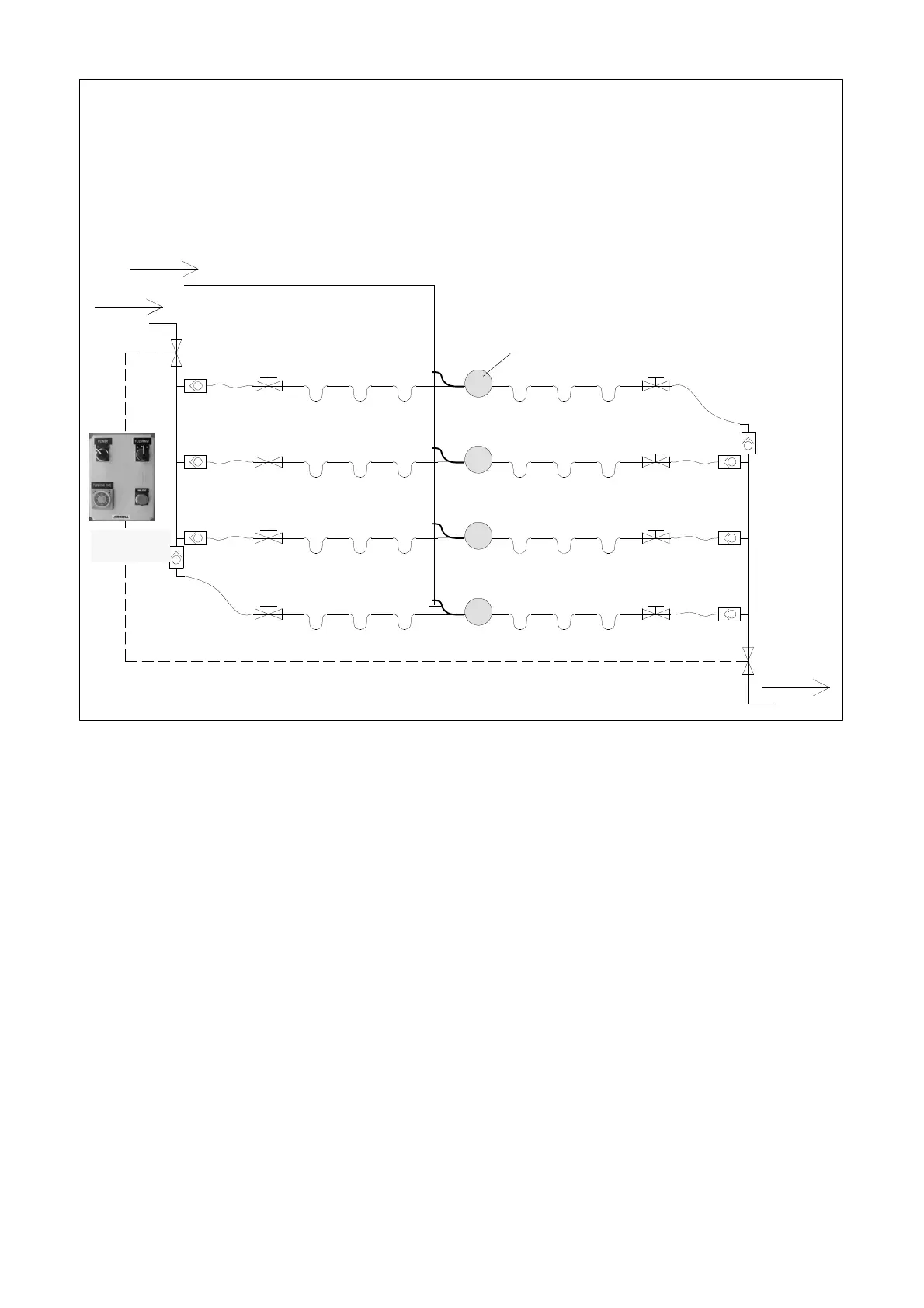

CONDUIT LAYOUT FOR AUTOMATIC FLUSHING, CENTRAL PRESSURE REGULATORS.
Flush
IN
OUT
Pressure regulator
PR
PR
PR
PR
Control
box 230V
