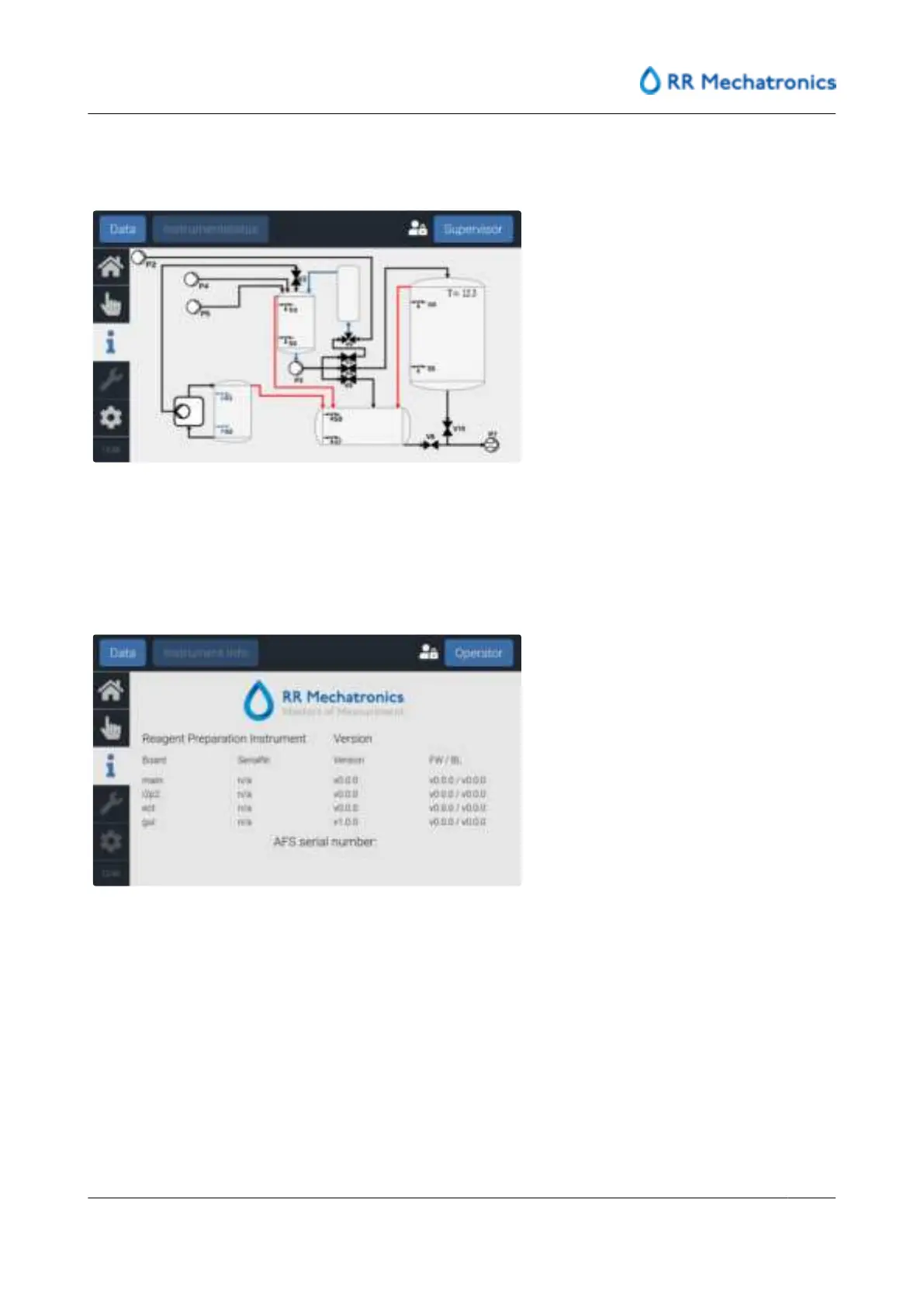

8.8.2 - Instrument state
This screen only indicates in which lines is an active water flow (in blue). The lines in black are not
containing water at that moment.
The overflow lines are only indicated in red, meaning an inactive water flow.
8.8.3 - Instrument information
On this screen general information, several software status and serial numbers are displayed.
User interface and software menu
MRN-184-EN Version 6 (05-01-2022)
61
