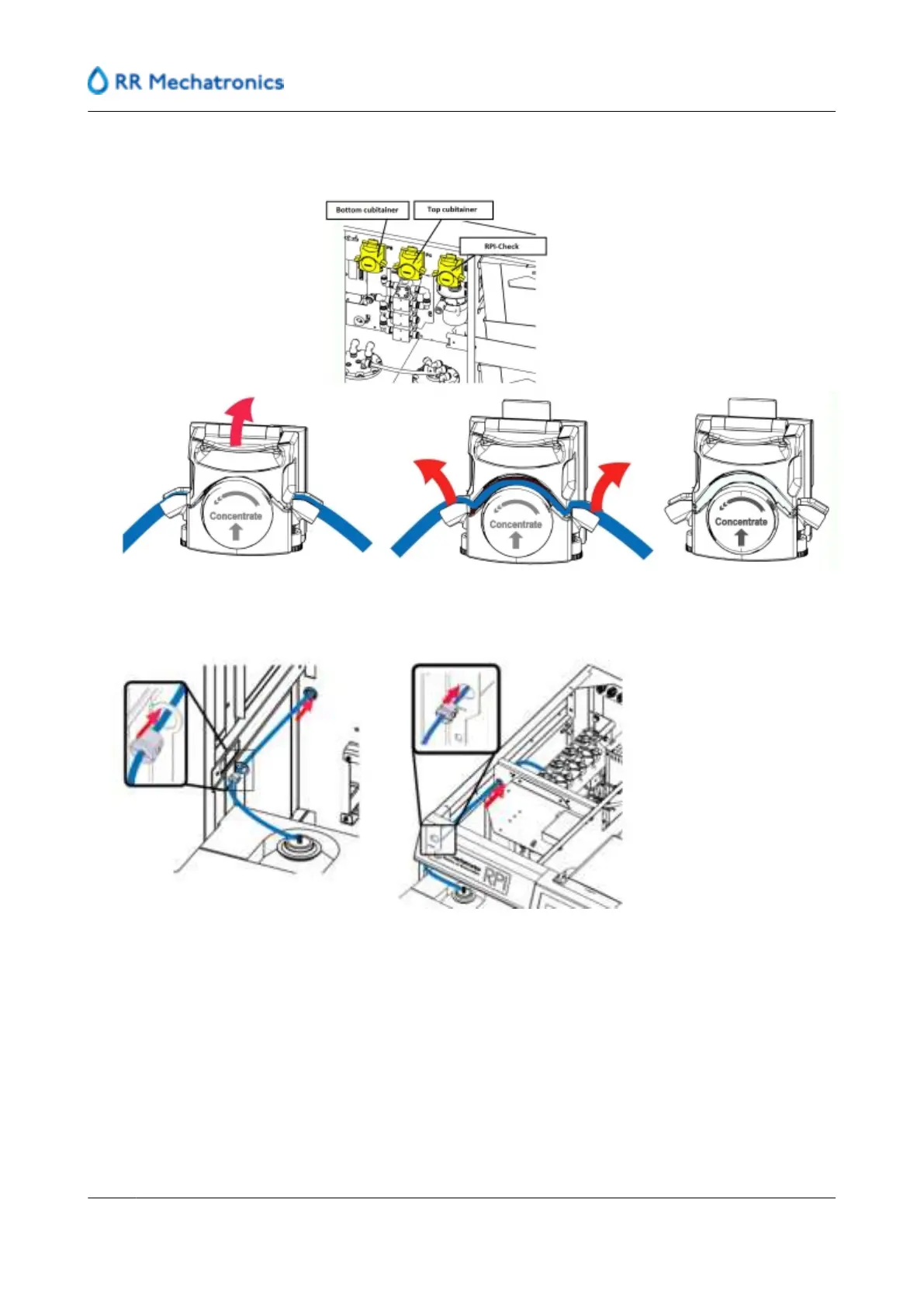

11. Remove the old tubes from the pumps.
Lift the lever to open the clamp system, remove old tube
12. Guide the new pump tubes to the holes, push the strain relief in the hole.
