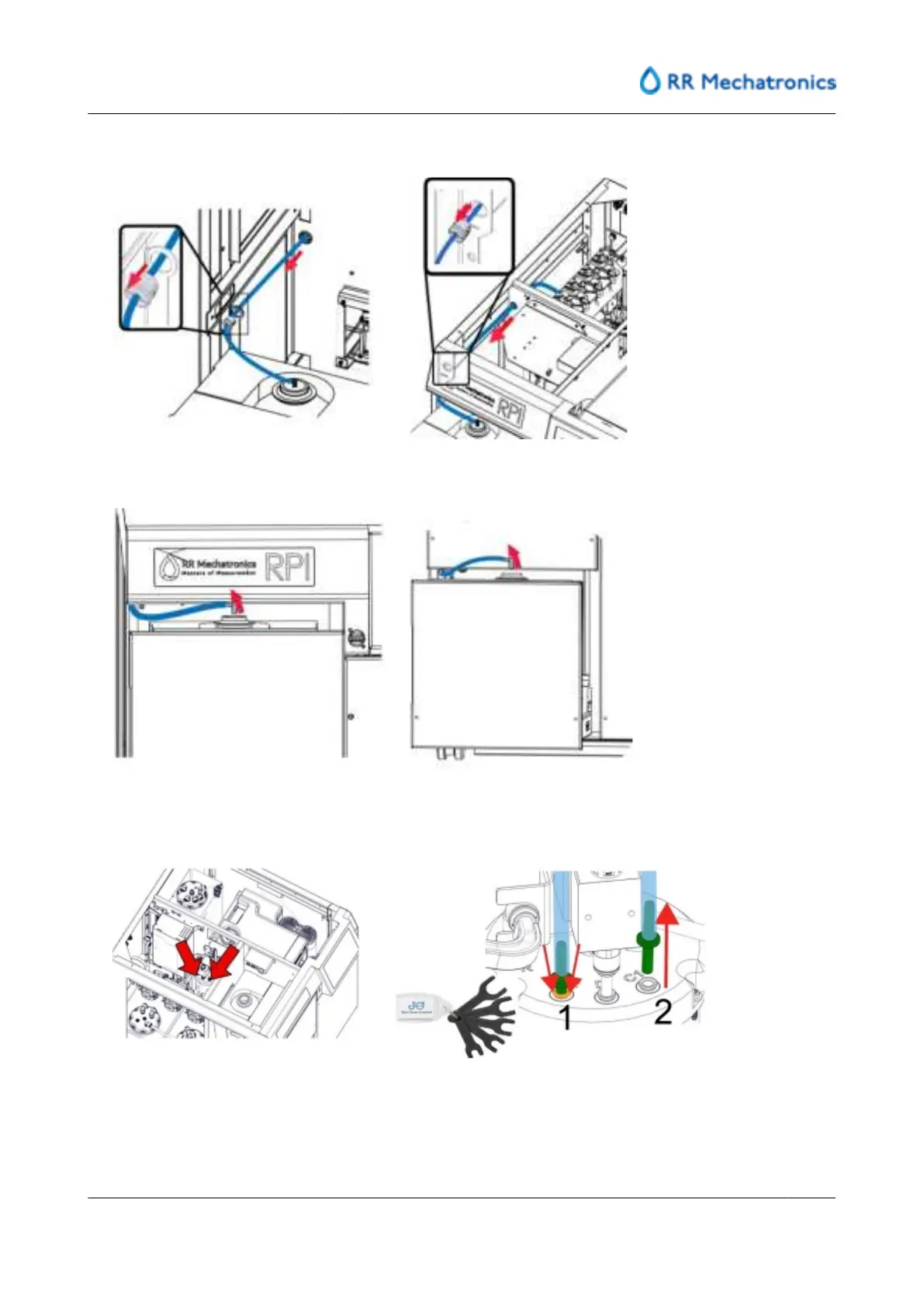

8. Remove the strain relief from the frame.
9. Disconnect the pump tubes from the cubitainers.
10. Disconnect the pump tubes from the mix vessel. Use the John Guest connection tool to remove the
tube coupling.
