3 Phase Power Analyser / EN
17 09/30/16 Version No. 00
(See Figure 1. Current Probe Positional Error and Figure 4. ICA 3600N Current Probe)
1. Connect the current probe to the instrument.
2. Connect the current probe jaws around the conductor to be measured
Centre the conductor inside the current probe jaw
Make sure the probe is perpendicular to the conductor
Ensure the arrow on the top of the probe faces towards the load of the circuit
For optimal reading, ensure that the conductor is positioned between the alignment
marks on the jaws of the current probe
Avoid taking measurements close to other current carrying conductors

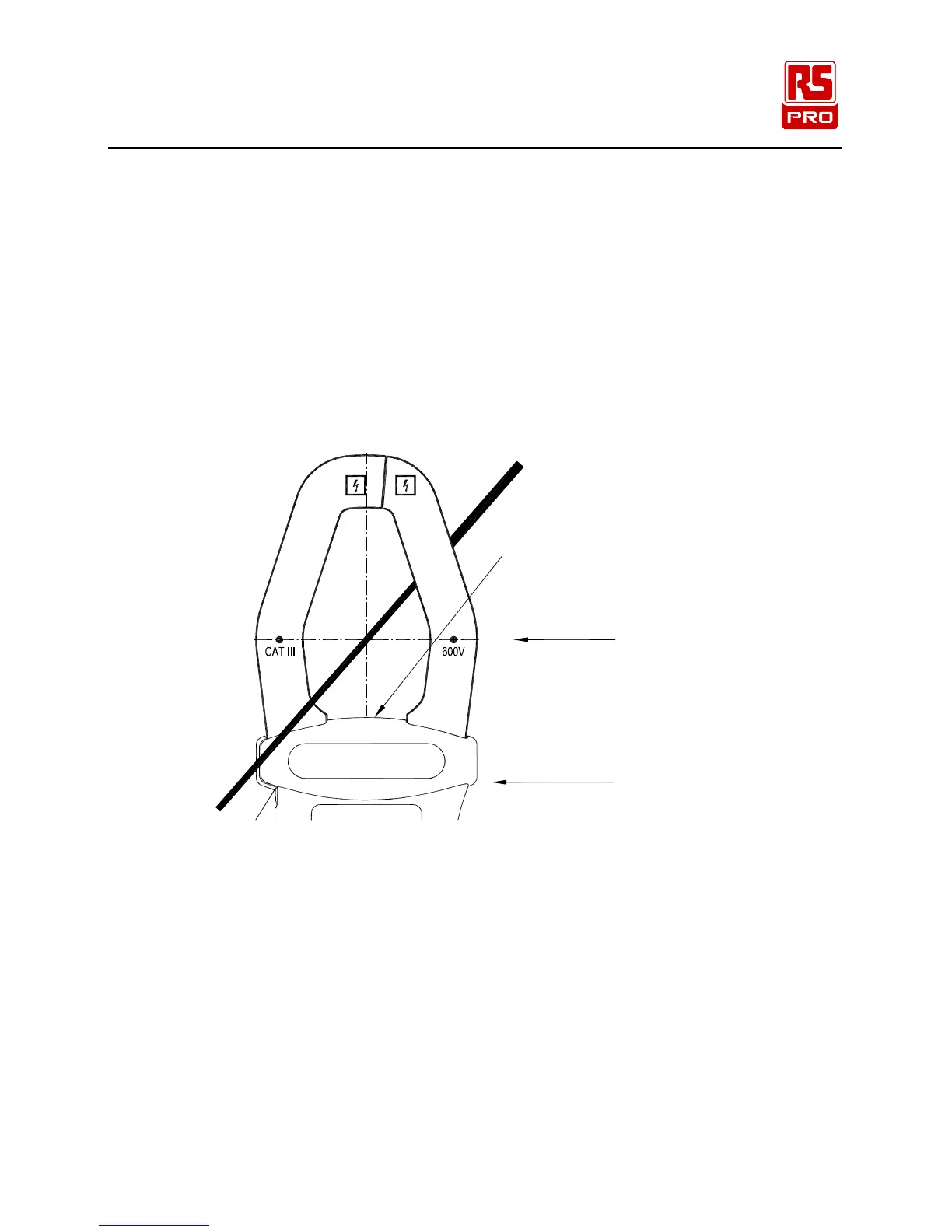

Load Direction Arrow
Alignment Marks
Tactile Barrier
Figure 4. ICA 3600N Current Probe
