RST VW2106 - Figure 3-1 Terminal Posts; Table 4-1 Standard Wiring Colour Codes

VW2106 Vibrating Wire Readout Manual
ELM0042M
RST Instruments Ltd.
Page 5

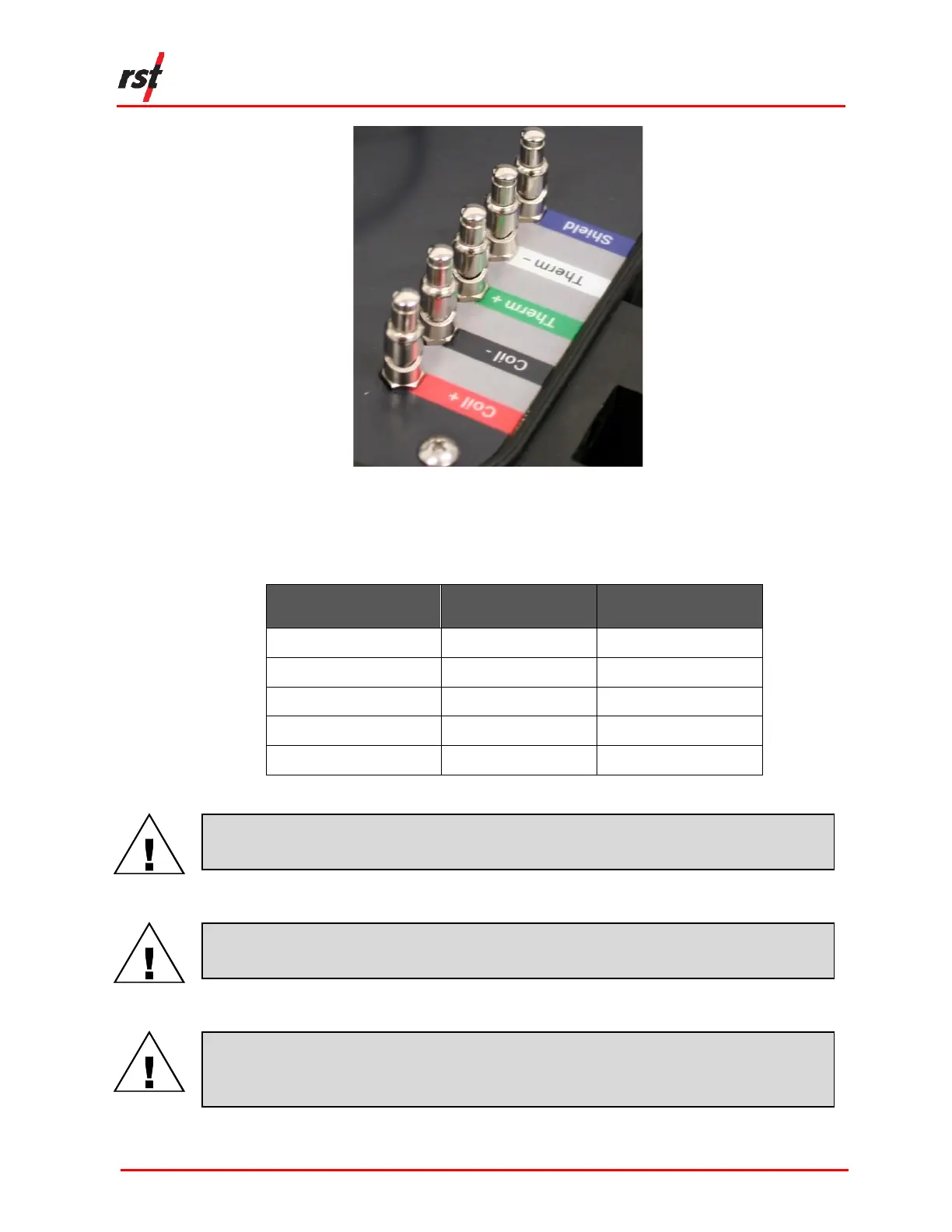

FIGURE 3-1 TERMINAL POSTS
Table 3-1 lists matching colours and wire transducers.
TABLE 3-1 STANDARD WIRING COLOUR CODES
Post Colour
Wire Colour
Wire Transducer
Red
Red
Coil +
Black
Black
Coil -
Green
Green
Therm +
White
White
Therm -
Blue
Bare
Shield
CAUTION: MAKE SURE THAT THE WIRES ARE CLEAN AND FREE OF DIRT BEFORE
INSERTING THEM INTO THE TERMINALS.
CAUTION: ENSURE THAT CABLES HAVE ENOUGH SLACK TO FACILITATE
ATTACHMENT. APPROXIMATELY 2” OF SLACK IS RECOMMENDED.
CAUTION: ENSURE THAT THE TERMINALS ARE FREE FROM DIRT AND DEBRIS
BEFORE INSERTING THE WIRES. TERMINALS CAN BE BLOWN OUT WITH COMPRESSED
AIR IF NECESSARY.
2. Firmly press down on the first terminal post (Figure 3-2).
