Default IP Address – 192.168.0.100
460 Gateway User Manual Page 20

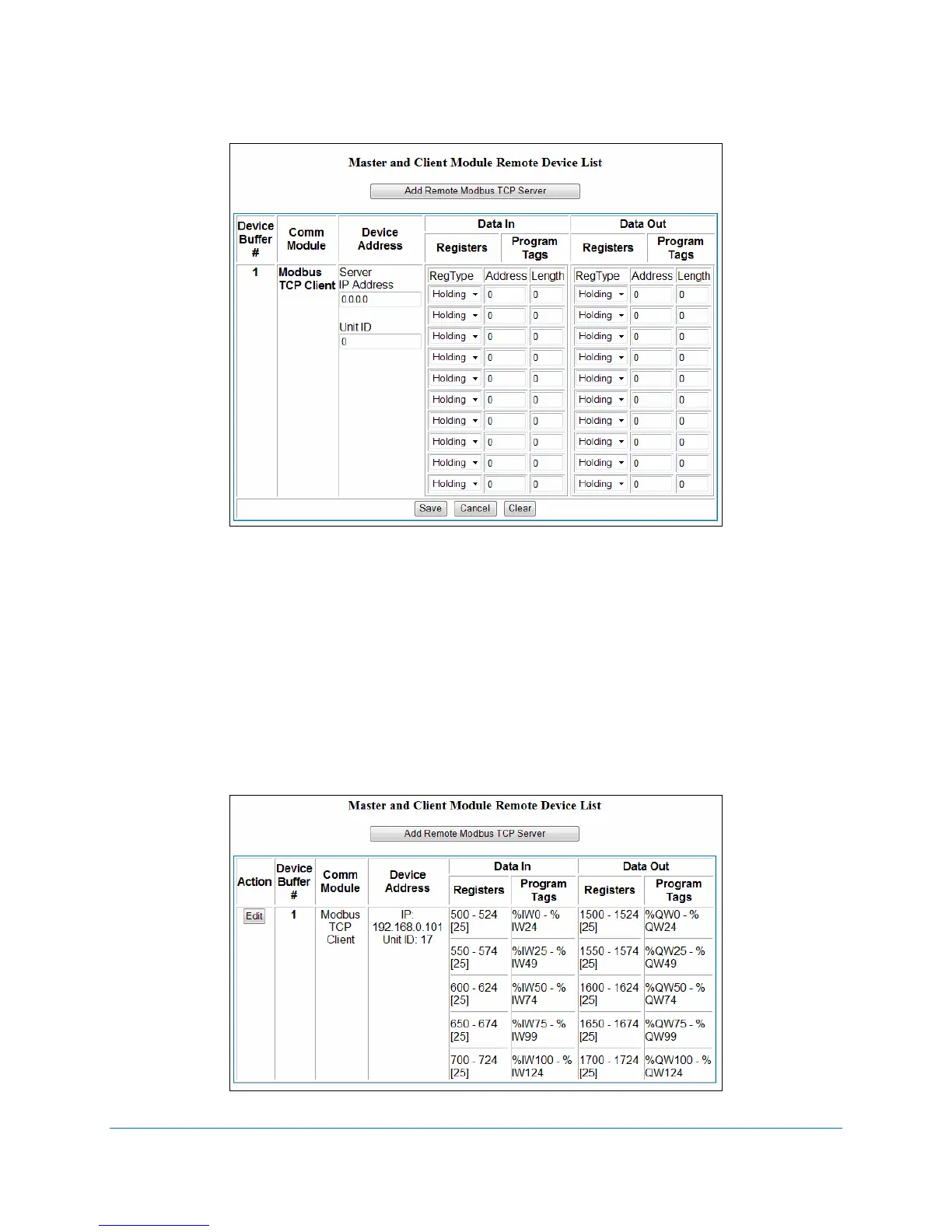

Figure 2-23 Modbus TCP Client registers and program tags
9. Enter the Server IP Address and Unit ID. Select the data types (RegType) from the drop-
down menus for the registers. Enter the address and length for each data type in this
Device Buffer.
10. Select Save. The Master and Client Module External Device List re-displays with the
information entered for that Device Buffer. See Figure 2-24. To add another Device
Buffer, click on the Add Remote Modbus TCP Server button and then edit that buffer’s
settings.
Figure 2-24 Modbus TCP Client data selections
