Default IP Address – 192.168.0.100
460 Gateway User Manual Page 36

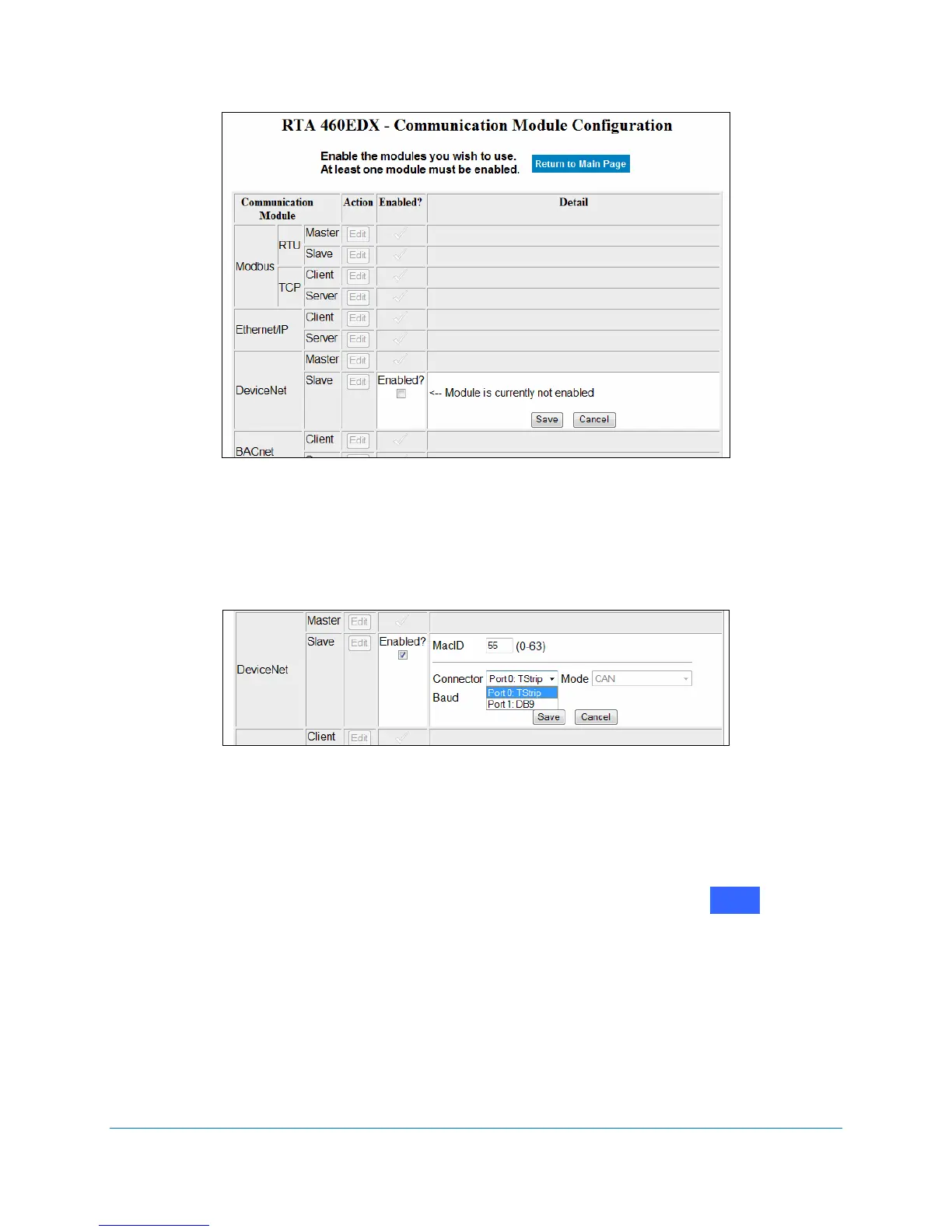

Figure 2-45 Enable DeviceNet Slave configuration
3. Click on the Enabled? checkbox.
The Module’s Detail options expand when enabled. See Figure 2-46.
Figure 2-46 DeviceNet Slave configuration details
4. Select the appropriate options from the drop-down menus.
5. Click on
Save.
The selections stay visible on the
Communication Module Configuration screen, although
they are grayed out. See Figure 2-47. To change these settings, click on next to
DeviceNet Slave again to make any necessary changes.
Edit
