Default IP Address – 192.168.0.100
460 Gateway User Manual Page 48
Note: Only one RS232, RS485, or CAN port setting can be active per unit. For example, a
unit cannot have two ports set for RS232 or two set forRS485 (regardless of duplex
settings). If the same mode is selected for two communication modules, a message
similar to Figure 2-62 displays.

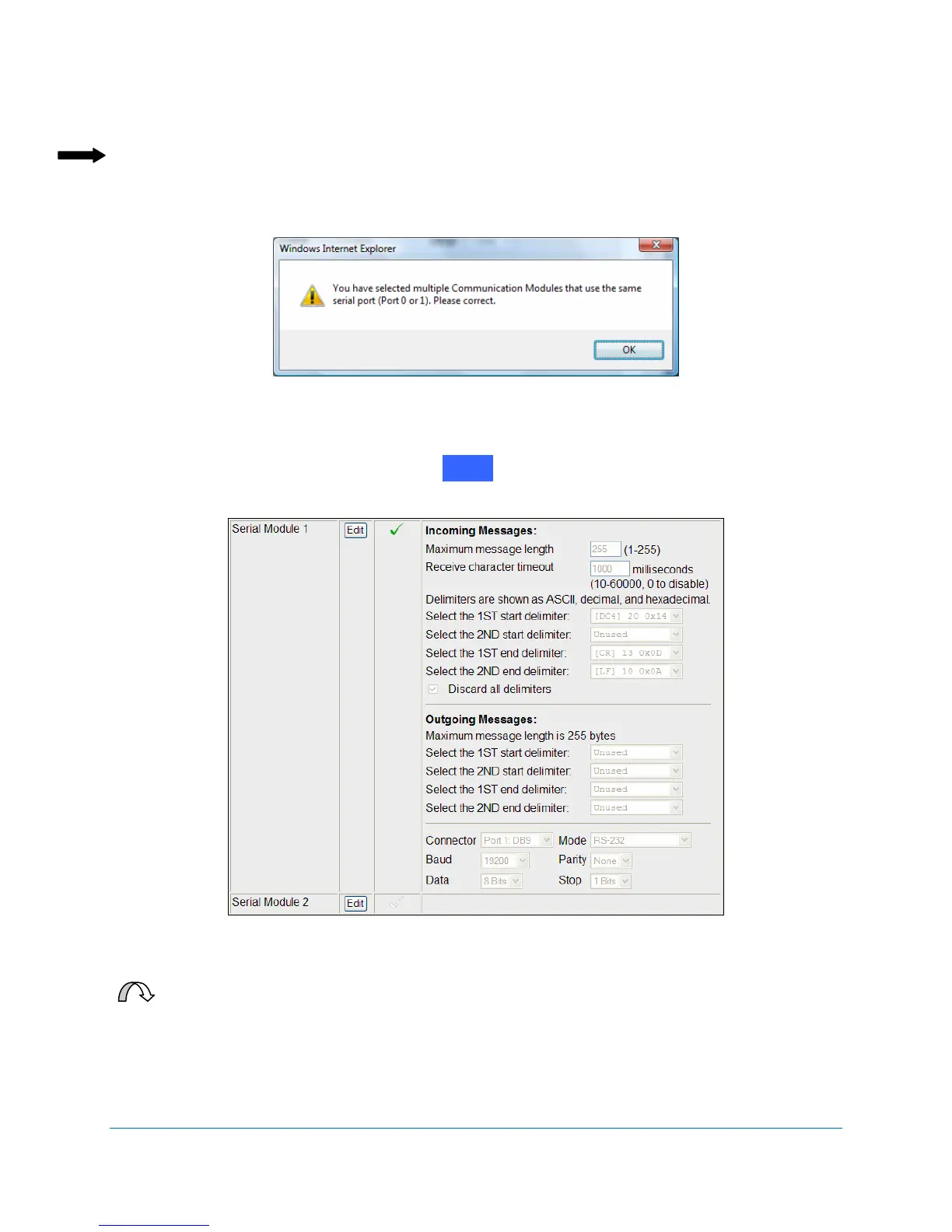

Figure 2-62 Serial port incompatibility error
5. Click on Save.
The selections stay visible on the Communication Module Configuration screen, although
they are grayed out (until you select again). See Figure 2-63.
Figure 2-63 Serial Module configuration details selected
For Your Information: Familiar users can make all desired communication
module edits before completing the external device list for the master/client
devices. The order of the configuration steps do not matter as long as the
communication module is enabled.
