RTI VSW-51 User Manual

Compact Scaler Switcher Set
8
 MIC Mode
MIC input has a low frequency characteristics, and wide frequency response.

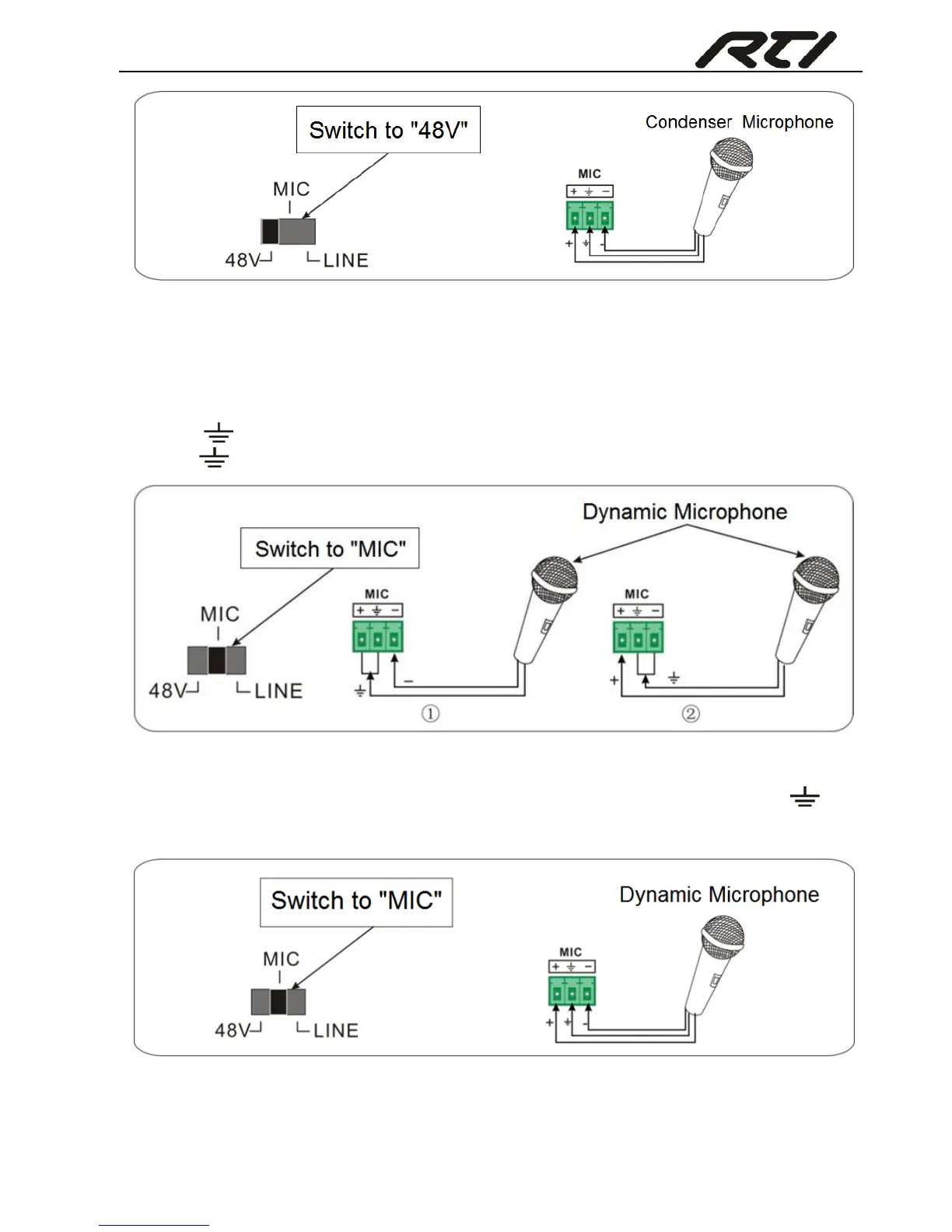

When switch to “MIC”, the microphone input is used for connecting with dynamic
microphone. There are two different connection methods:
1) Unbalanced connection:
“+” and “ ” connect to ground, and “-” connects to signal.
“-” and “ ” connect to ground, and “+” connects to signal.
2) Balanced connection: “+” connects to positive, “-” connects to negative and “ ”
connects to ground.
 LINE Mode
LINE input has a low frequency characteristics, and wide frequency response.

RTI VSW-51 Specifications

General

Brand	RTI
Model	VSW-51
Category	Switch
Language	English
