3. System Connection
3.1 Usage Precautions
 System should be installed in a clean environment and has a prop temperature
and humidity.
 All of the power switches, plugs, sockets and power cords should be insulated and
safe.
 All devices should be connected before power on.

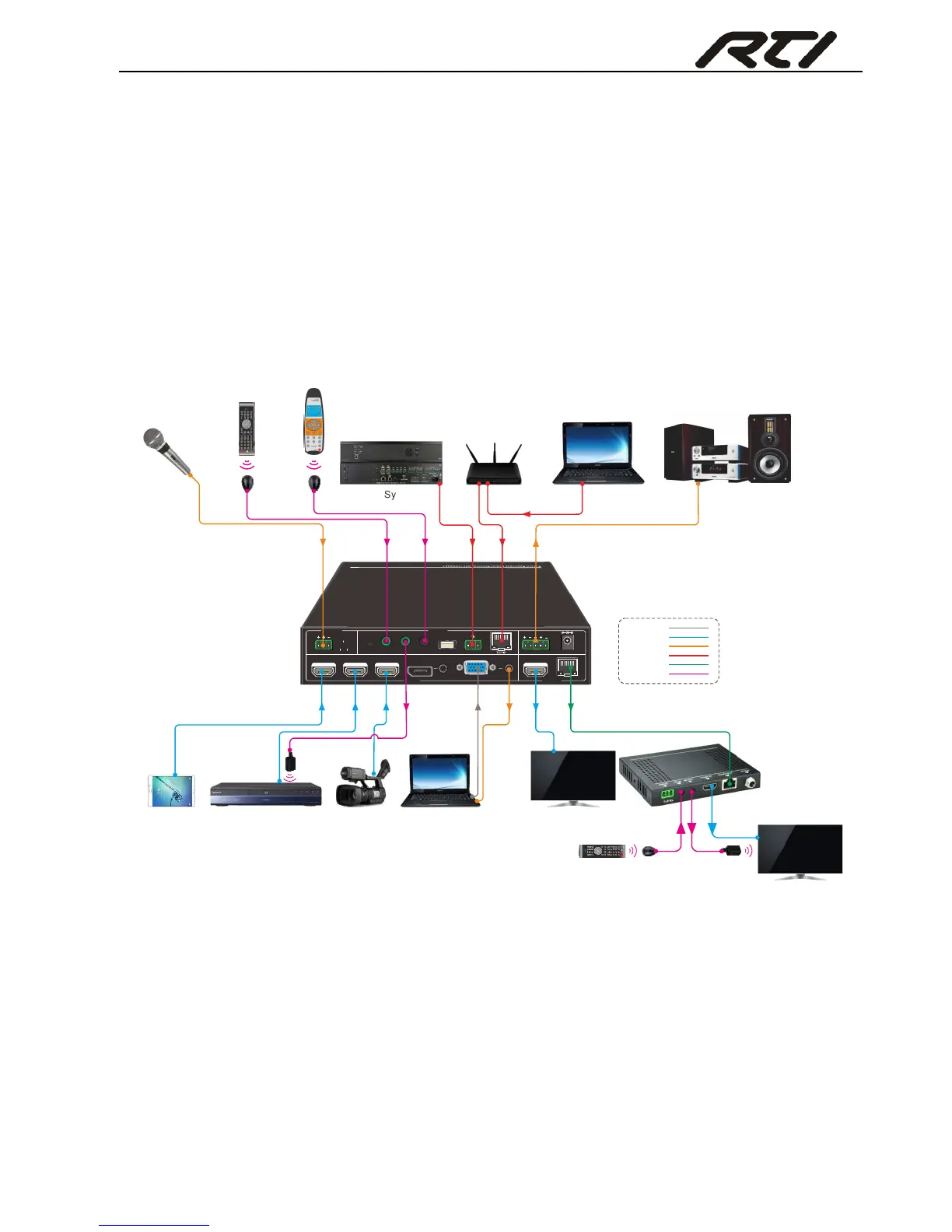

3.2 System Diagram
3.3 Connection Procedure
Step1. Connect HDMI source devices (e.g. Blue-ray DVD) to 1~3 HDMI input ports with
HDMI cable
Step2. Connect a DisplayPort source device (e.g. MAC MINI) to DP input port with
DisplayPort cable and DP audio input port with audio cable.
Step3. Connect a VGA source device (e.g. Laptop) to VGA input port with VGA cable
and VGA audio input port with audio cable.
DC 24 V 48V LI NE IR EY EIR IN IR OUT
MIC INPUT
MIC
FIR MWARE AUDI O OUT
L R
RES R ESET
RS2 32
Tx
Rx
INP UTS OUTP UTS
3-H DMI2-H DMI1-H DMI / MHL 4-D P 5-VG A HDMI
HDB T
CON TROL
IR Emitter
Camera
Laptop
TV Remote
Microphone
Speaker
Switcher Remote
Control System
Laptop
TV
HDBaseT Receiver
DVD Remote IR Receiver
DVD
TV
IR Emitter
VGA:
HDMI:
Audio:
HDBaseT:
IR Control:
Control:
Pad
IR Receiver
Router
