RTI VSW-51 User Manual

Compact Scaler Switcher Set
31
4.5.2 Configuration Menu

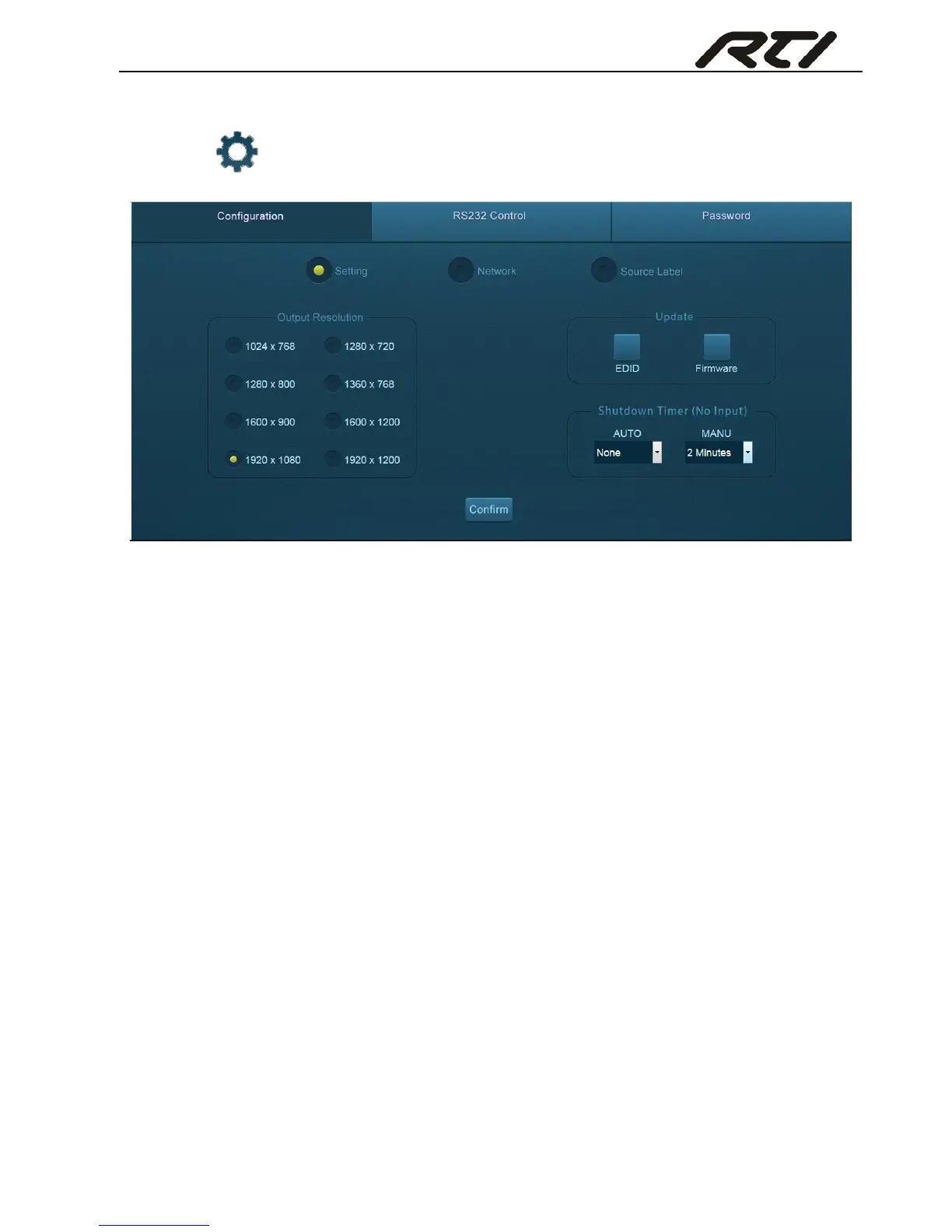

1) Click on control menu to enter setting menu shown as below:
 Output Resolution: Select the output resolution that you need and then click
Confirm.
 Update: Insert the USB flash disk with EDID file/software updating file to
FIRMWARE port, and then click EDID/Firmware to start update procedure.
 Shutdown Timer(NO Input)：Set the shutdown time under manual-switching mode
or auto-switching mode, including none, 1 minute, 2minutes, 5minutes and 10
Minutes. If the Scaler Switcher can’t detect video source input, it will automatically
shut down after a preset interval.

RTI VSW-51 Specifications

General

Brand	RTI
Model	VSW-51
Category	Switch
Language	English
