RTI VSW-51 User Manual

Compact Scaler Switcher Set
4

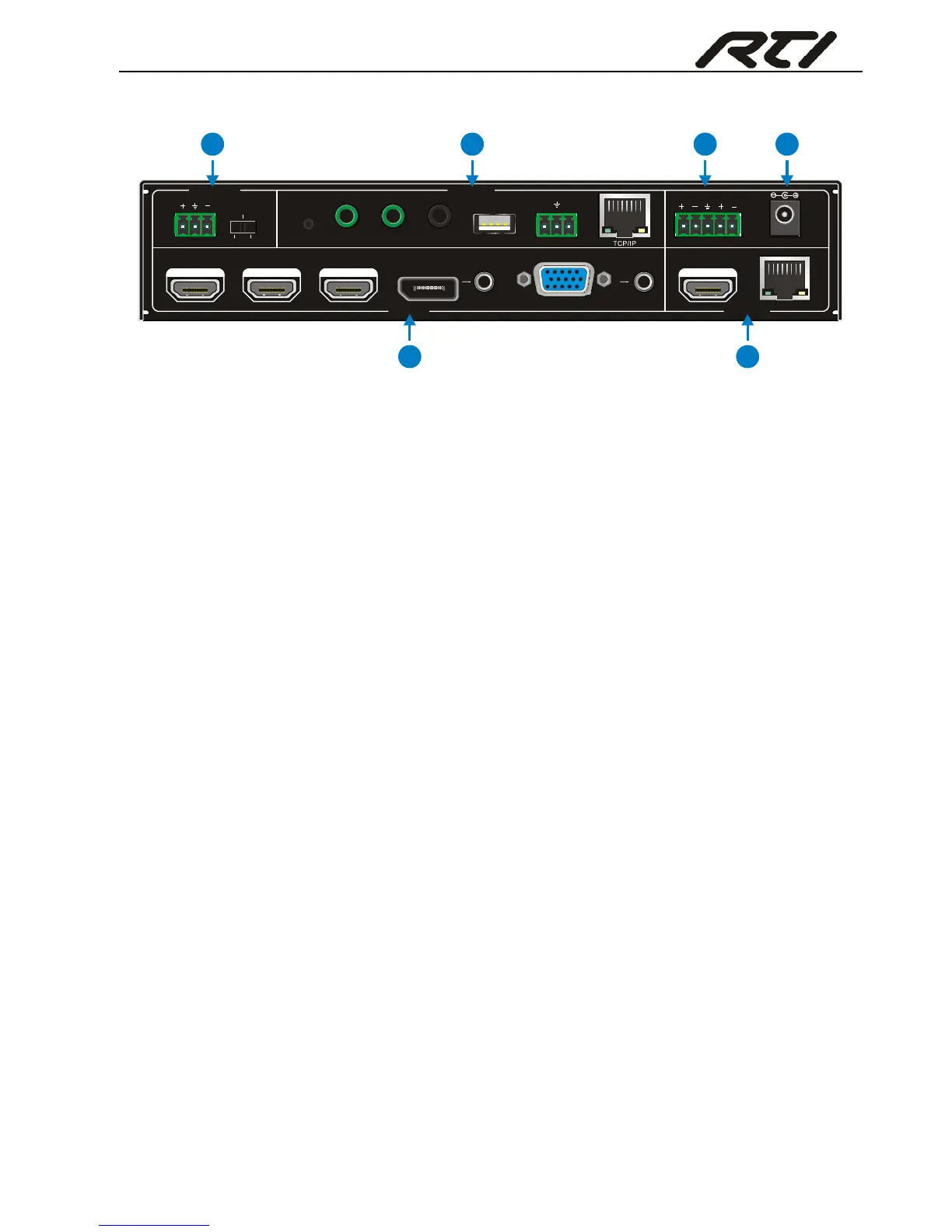

2.2 Rear Panel
① INPUTS
 Video input ports: 1 HDMI/MHL input, 2 HDMI inputs, 1 DP and 1 VGA.
 Audio input ports: 1 DP external audio input and 1 VGA auxiliary audio input.
② OUTPUTS
 HDMI output: HDMI video output port
 HDBaseT output: Support PoH. Connect with an HDBaseT Receiver to transmit
AV signal or IR/RS232 control signal.
HDBaseT output boasts green and yellow indicator. The green indicator will blink
when power. If connect an HDBaseT receiver to this output successfully, the yellow
indicator will light up, and the green indicator will keeps blinking.
③ MIC INPUT
 MIC audio port: connect to Microphone.
 Dial switch: including 3 level
 48V phantom power mode (connect with condenser microphone);
 MIC mode (connect with dynamic microphone);
 LINE mode (connect with wireless microphone or line audio).
④ CONTROL
 RES RESET: press this button to reset the output resolution to 1280×720p, or
activate HDMI and HDBT outputs when they are closed.
 IR IN: connect with IR receiver (with carrier wave only) to receive IR signal to
control far-end device which was connected to HDBaseT Receiver via HDBaseT
output port.
 IR OUT: connect with IR emitter to control local source devices from remote.
 IR EYE: connect with IR receiver (with carrier wave only) to receive IR signal send
by IR remote to control this Scaler Switcher.
 FIRMWARE: Type-A USB port for updating system firmware or loading
DC 24V 48V
LINE IR EYEIR IN IR OUT
MIC INPUT
MIC
FIRMWARE
AUDIO OUT
L R
RES RESET
RS232
Tx
Rx
INPUTS OUTPUTS
3-HDMI
2-HDMI1-HDMI / MHL 4-DP 5-VGA HDMI
HDBT
CONTROL
1
2
3
4
5
6
