RTI VSW-51 User Manual

Compact Scaler Switcher Set
30

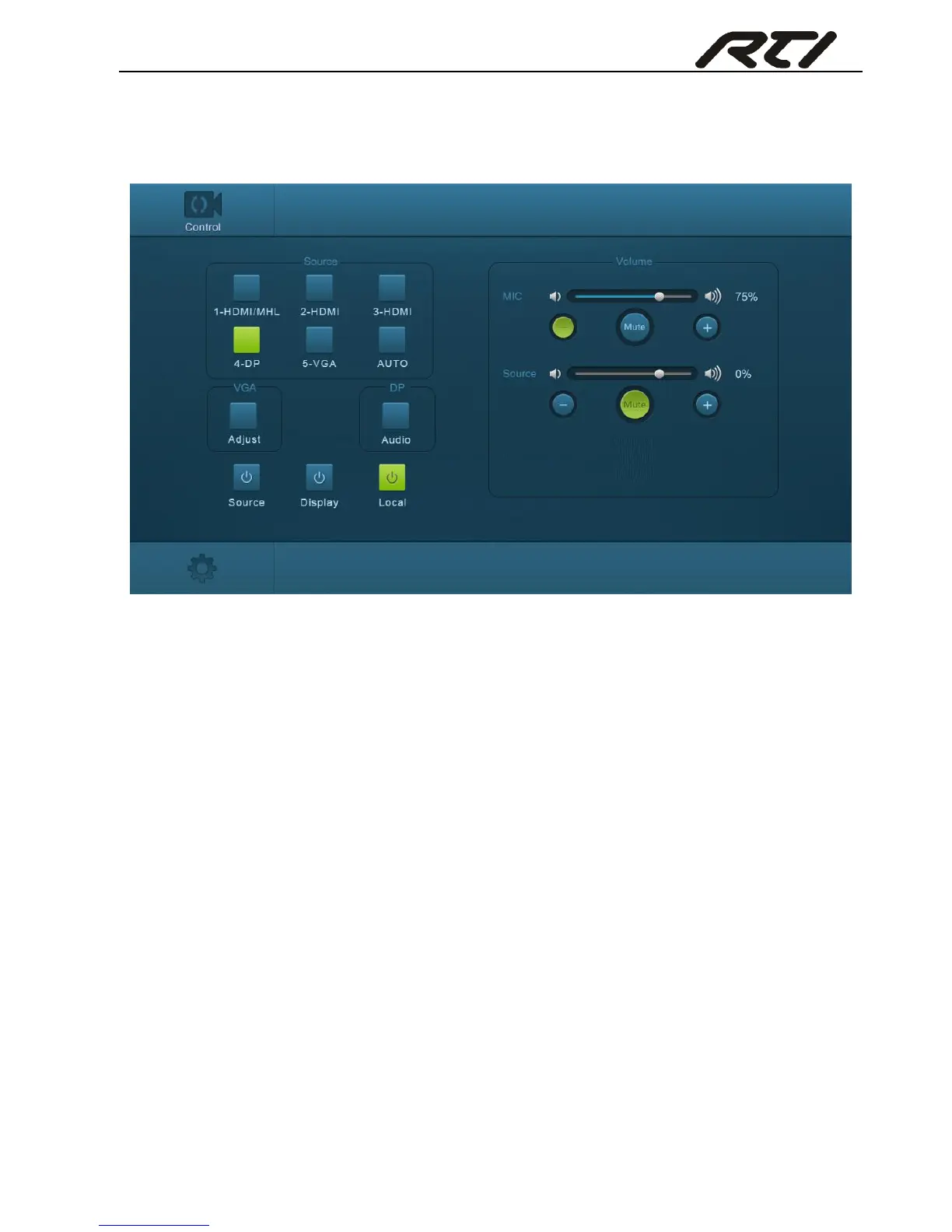

4.5.1 Control Menu
Type user name: user and password: user (default setting) on the log-in interface, and
then click Login to enter Control menu shown as below:
 Sources: Click the corresponding button (1-HDMI/MHL, 2-HDMI, 3-HDMI, 4-DP,
and 5-VGA) to select video input source.
 VGA: Click Adjust to adjust the position of VGA video output image to make sure
the best visual effect.
 DP: Click Audio to turn on/off the DP external audio input.
 Volume: Click the corresponding positive/negative button to increase/decrease the
volume of microphone audio or source audio input. Click the corresponding Mute
button to mute/unmute microphone audio or source audio input.
 Click Source to turn on/off input source device.
 Click Display to turn on/off output display device.
 Click Local to let the Scaler Switcher r into standby mode.

RTI VSW-51 Specifications

General

Brand	RTI
Model	VSW-51
Category	Switch
Language	English
