RTI VSW-51 User Manual

Compact Scaler Switcher Set
25

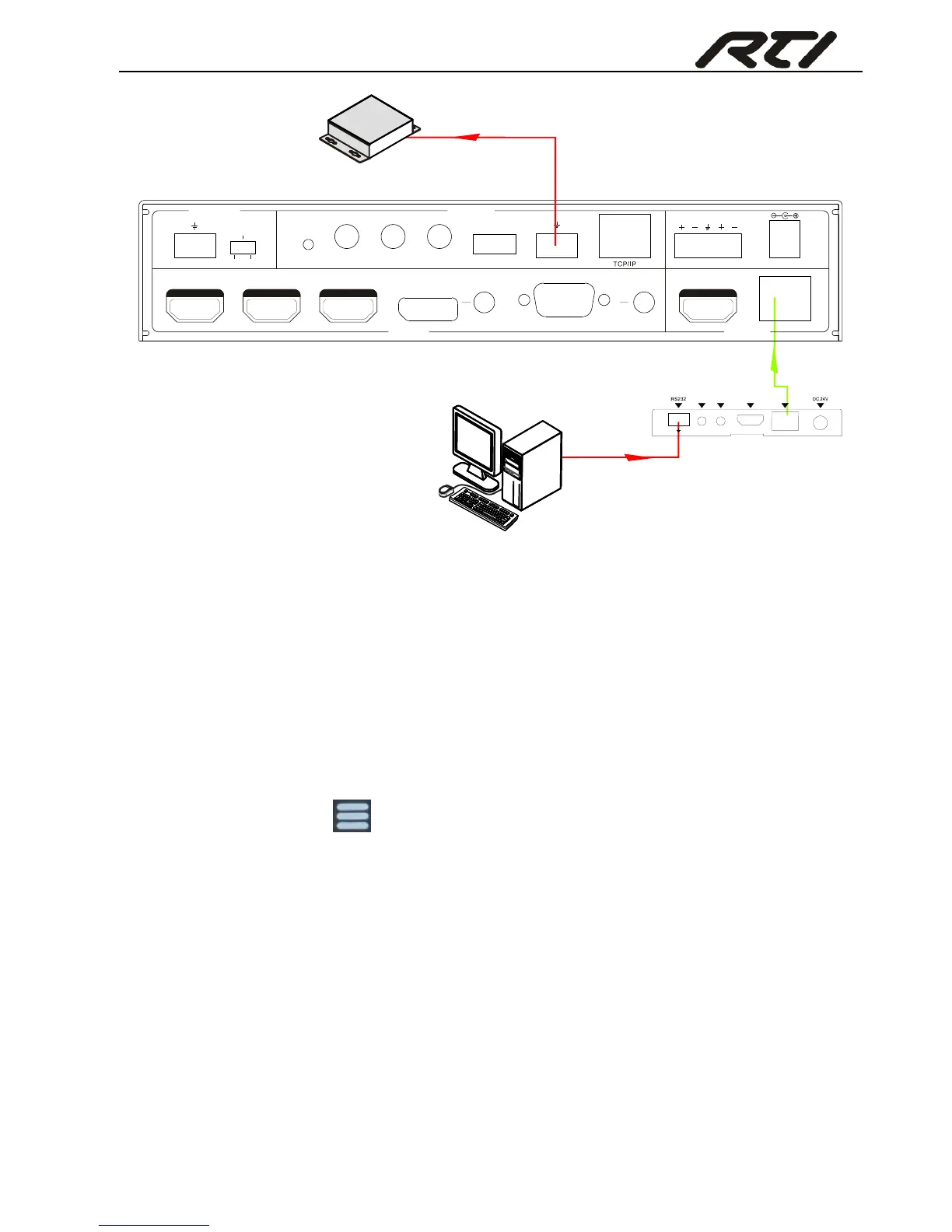

Control Compact Scaler Switcher or 3rd party device from Remote
4.4 OSD Menu Control
The Scaler Switcher provides a powerful OSD operation menu, contains 3 parts:
optional settings, image settings, and system setting etc.
There are three ways to enter OSD menu:
 Long-press the button MENU/2s on front panel 2 seconds or more.
 Press MENU button on IR remote.
 Send the command “#OSD:MENU!” on RS232 Control Software.
Operation way:
 Press direction buttons on front panel or IR remote to switch between menu options
and menu pages.
 Press ENTER on front panel or OK on the IR remote to confirm the selection.
PC
48V LINE IR EYEIR IN IR OUT
MIC INPUT
MIC
FIRMWARE AUDIO OUT
L R
RES RESET
RS232
Tx
Rx
L R
INPUTS OUTPUTS
3-HDMI
2-HDMI1-HDMI / MHL 4-DP 5-VGA HDMI
HDBT
CONTROL
DC 24V
I R
O U
T
I R
I N
H
D M
I O U
T
HDBT IN
Tx Rx
HDBaseT Receiver
3rd party
