RTI VSW-51 User Manual

Compact Scaler Switcher Set
12

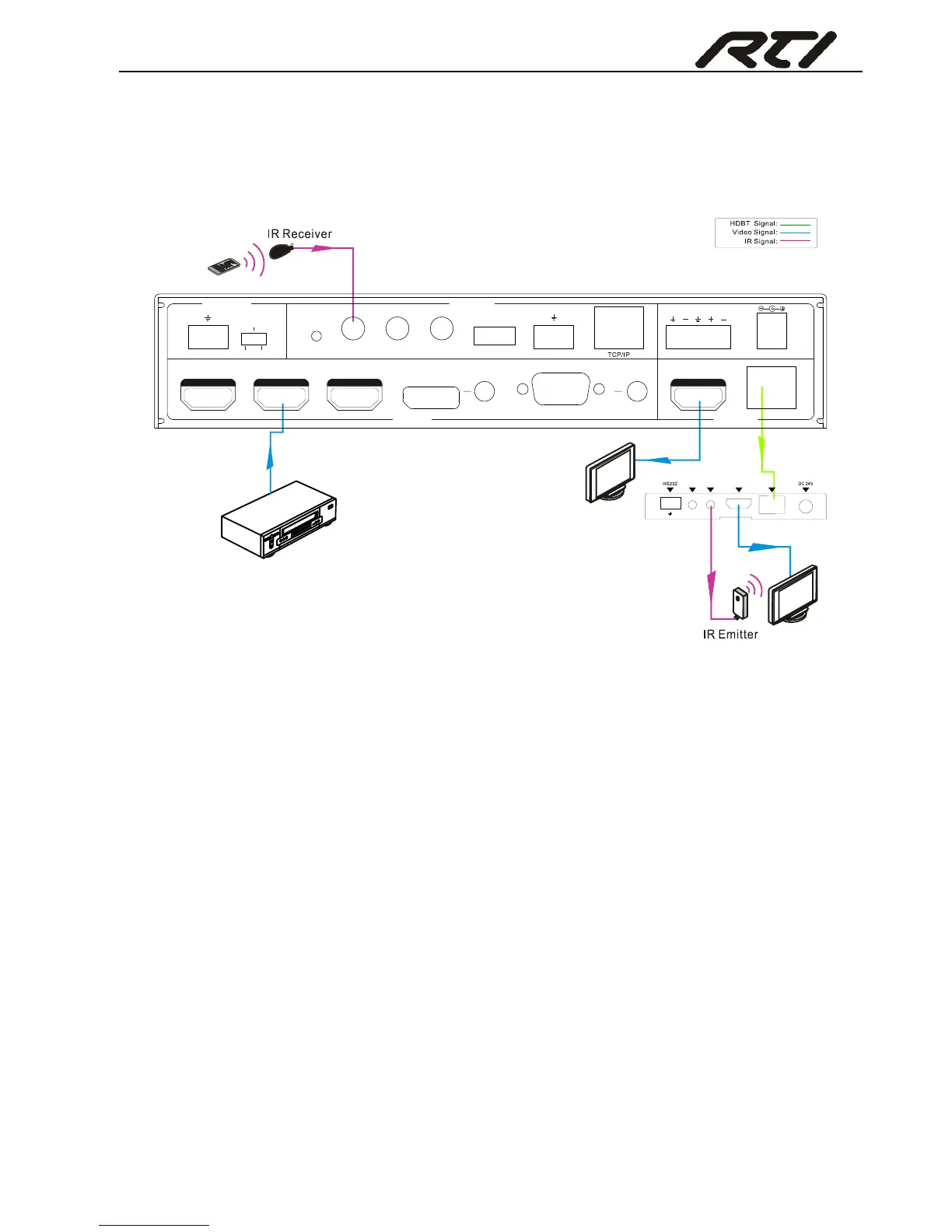

4.2.2 Control far-end device from local
Connect an IR receiver to IR IN port on the Scaler Switcher and connect IR emitter to
the IR OUT port on the HDBaseT Receiver, the far-end device can be control by its IR
remote from local.
4.2.3 Control local device from remote
Connect an IR emitter to IR OUT port on the Compact Scaler Switcher and connect IR
receiver to the IR IN port on the HDBaseT Receiver, the source devices can be control
by their IR remote from remote.
DVD
IR Remote
HDTV
48V
LINE IR EYEIR IN IR OUT
MIC INPUT
MIC
FIRMWARE
AUDIO OUT
L R
RES RESET
RS232
Tx
Rx
L R
INPUTS OUTPUTS
3-HDMI
2-HDMI1-HDMI / MHL 4-DP 5-VGA HDMI
HDBT
CONTROL
DC 24V
I
R O
U T
I R
I N H D M
I O
U T
HDBT IN
Tx Rx
HDBaseT Receiver
HDTV
