RTI VSW-51 User Manual

Compact Scaler Switcher Set
33
4.5.3 RS232 Control Menu

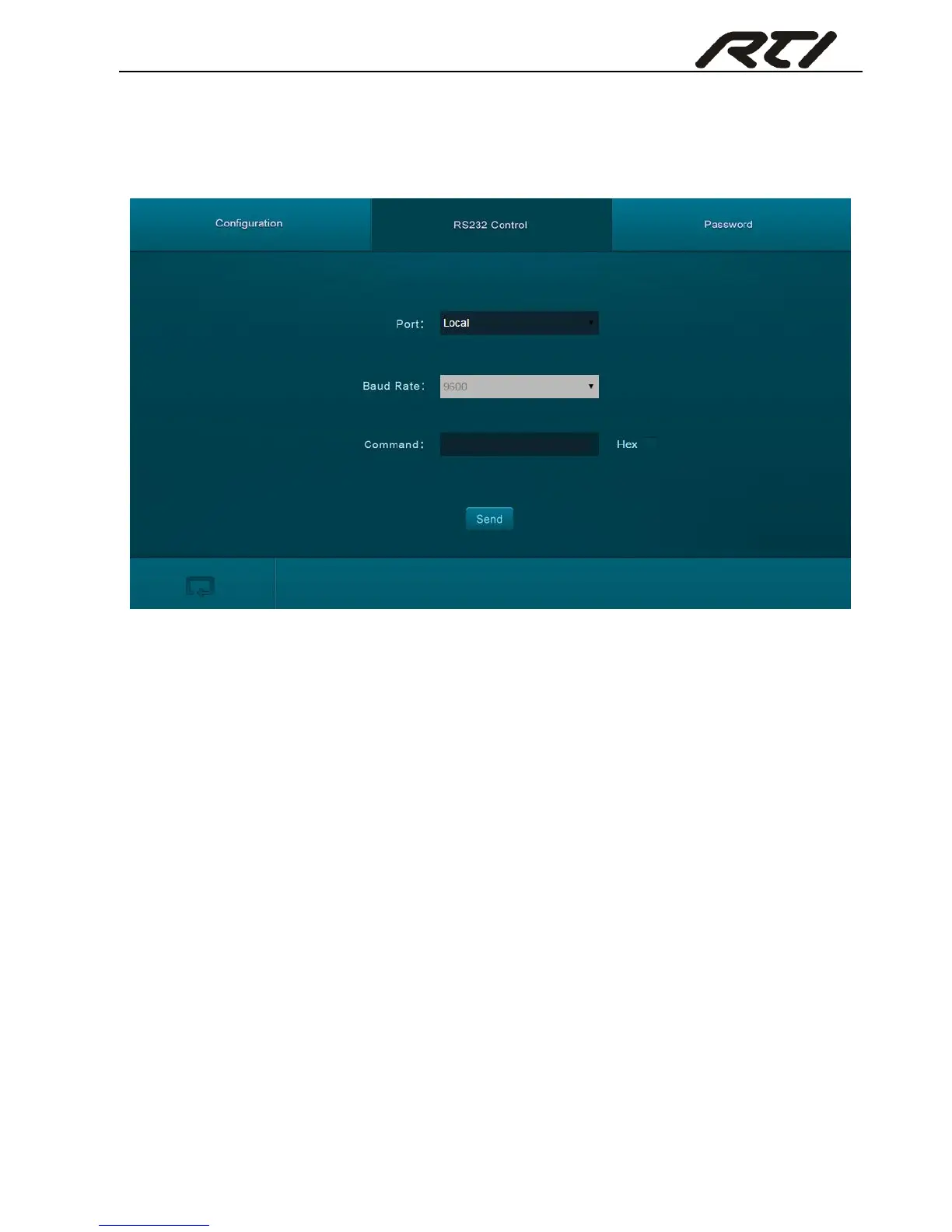

Click RS232 Control on the top of interface to enter RS232 control menu shown as
below:
 Port: Local port refers to the RS232 port of the Scaler Switcher, and the HDBT port
refers to the RS232 port of HDBaseT Receiver.
 Baud Rate: The baud rate of local port is 9600 which can’t be modified, but for
HDBT port, it support 2400、4800、9600、19200、38400、57600、115200.
 Command: Typing commands in this box to control the Scaler Switcher or the
far-end device which is connected to HDBaseT Receiver. If checked the “Hex”, you
can enter hexadecimal value in the “Command” box.
