Einbau- und Betriebsanleitung

Installation and Operating Instructions

Instructions de montage et de service

REact60/ 100-80180

REact60_100-8010v1.0.docx - 18 - 03/2023

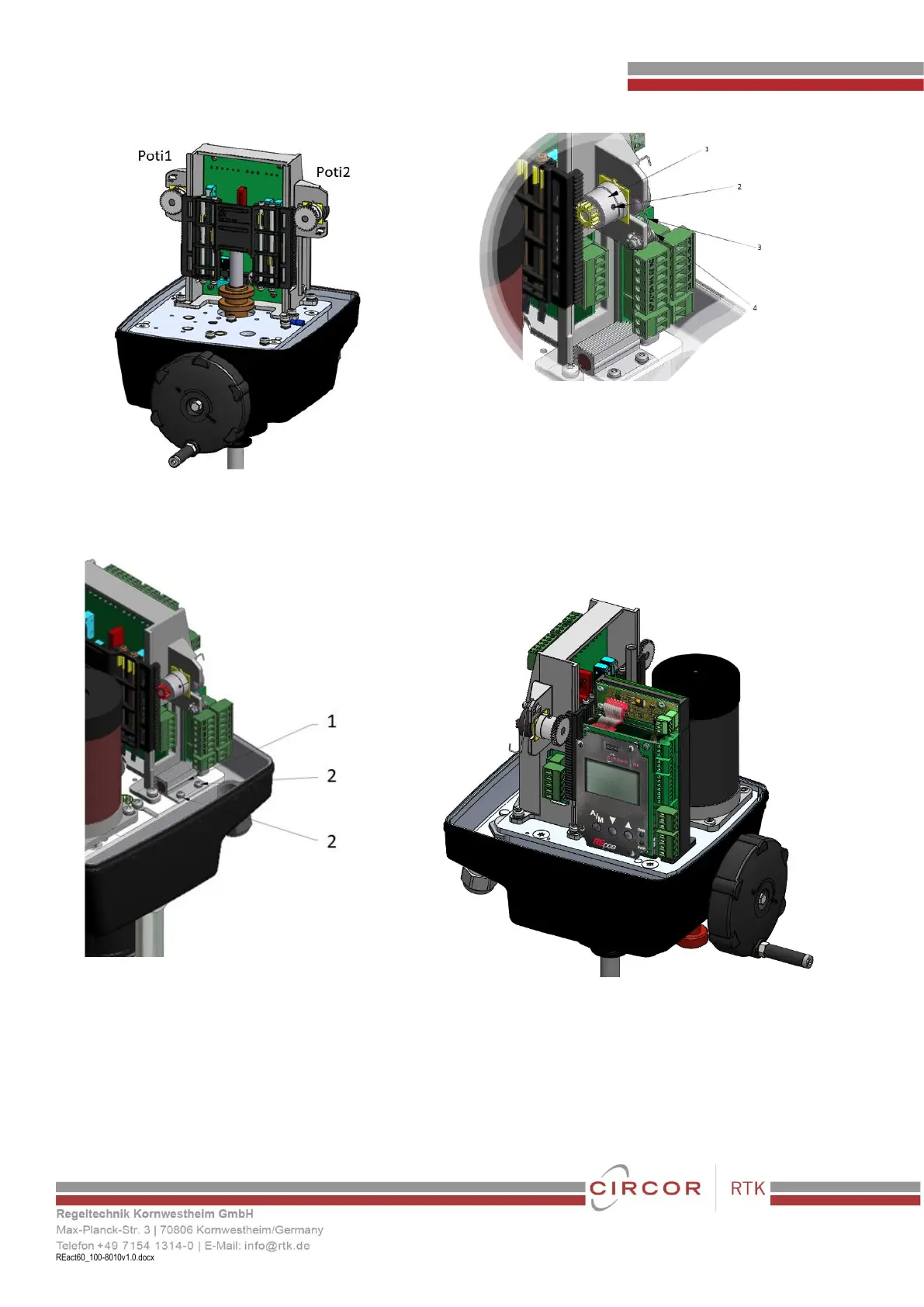

Position- Potentiometer1-2/

Fig.4

Potentiometer / Potentiomètre

Fig.5

1 Stellring/ Adjustment ring/ Bague de arrêt

2 Gewindestift/ Threaded pin/ vis sans tete

3 Biegefeder/ Flexible spring/ Ressort de Flexion

4 Linsenschraube/ screw/ vis

Heizung

Fig.6

1Heizung/ Heater/ Chauffage

2Schraube mit Federring/ Screw with spring washer/ Vis avec rondelle ressort

REpos

Fig.7
