Einbau- und Betriebsanleitung
Installation and Operating Instructions
Instructions de montage et de service
REact60/ 100-80200
REact60_100-8010v1.0.docx - 20 - 03/2023
REact60DC/ 100DC-Motor-Gruppe

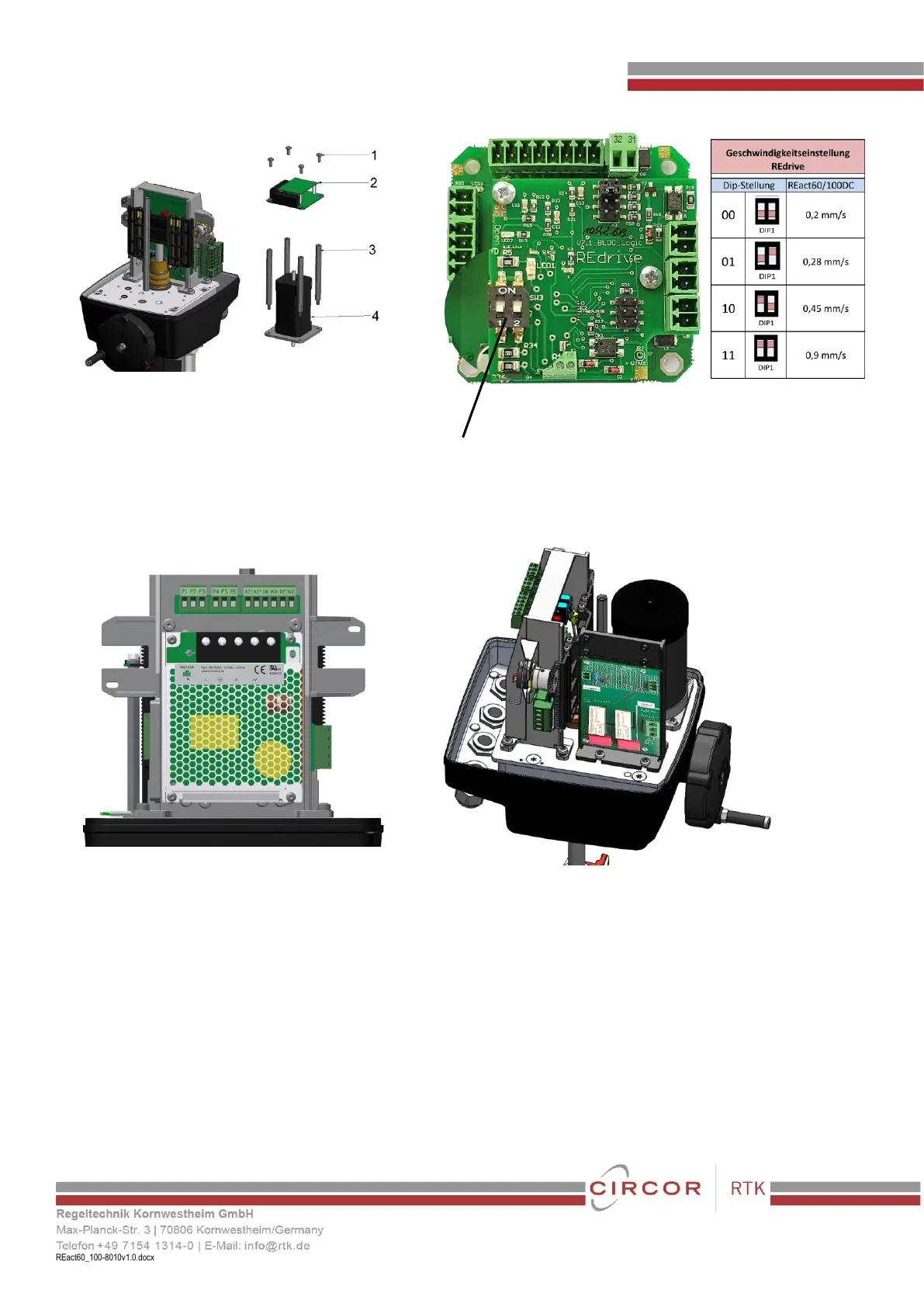

Fig. 12
1 2x Linsenschraube / screw / vis M4x10
2 1x REdrive-Platine/ REdrive board/ platine REdrive
3 2x Abstandsbolzen / distance bolts / boujons d'écartement M4x65 SW7
4 2x Federring / spring washer / rondelle élastique
5 2x Linsenkopf-Schraube / screw / vis ø4x16
6 BLDC-Motor-Gruppe / motor-group / groupe moteur
REdrive
Fig.13
Dip1
NG2450
Fig.14
DriCo-Modul
Fig.15
