Publication date: April, 2008
Revision A3
89
3-11-5. Management VLAN
Function name:
Management VLAN
Function description:
In Management VLAN Setting, user can input VID number. The range of VID
number is from 1 to 4094.

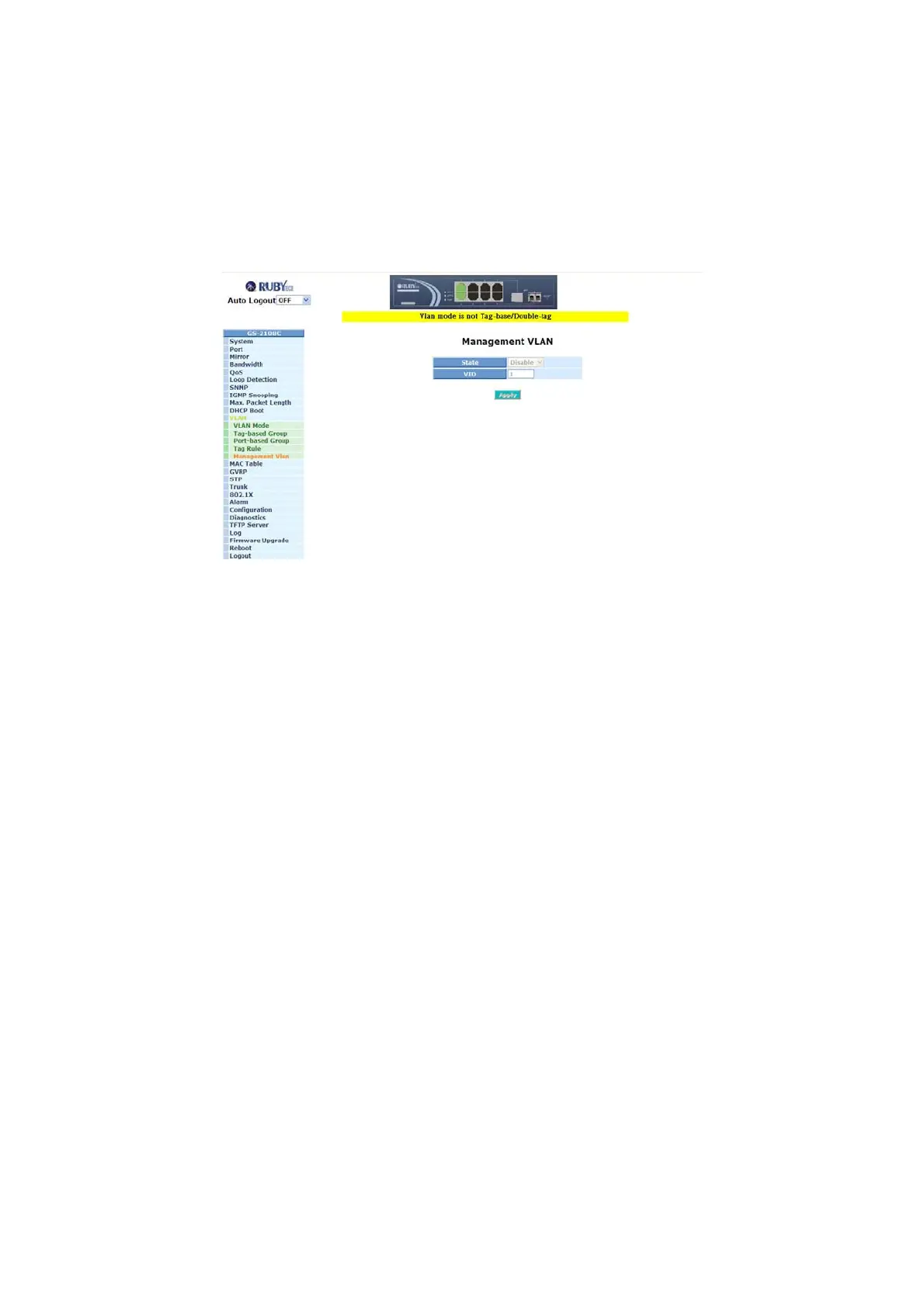

Fig. 3-40
Parameter description:
State:
It works when the tag-based mode is chosen. When this function is
enabled, only the tagged packets with this VID can manage the switch.
VID:
Valid range 1~4094.
Note: VLAN mode is not Tag-base/ Double-tag
