GS-2108C User Manual
Publication date: April, 2008
Revision A4
61
3-4. Bandwidth Management
Function name:
Bandwidth Management
Function description:
Bandwidth Management function is used to set up the limit of Ingress and
Egress bandwidth for each port.
Note:
Each port of the switch owns 16KB packet buffer. The packet buffer size will
be reduced when the bandwidth rate limitation is enabled, which may cause
that jumbo frame cannot be forwarded.
Please avoid enabling jumbo frame and bandwidth rating functions at the
same time.

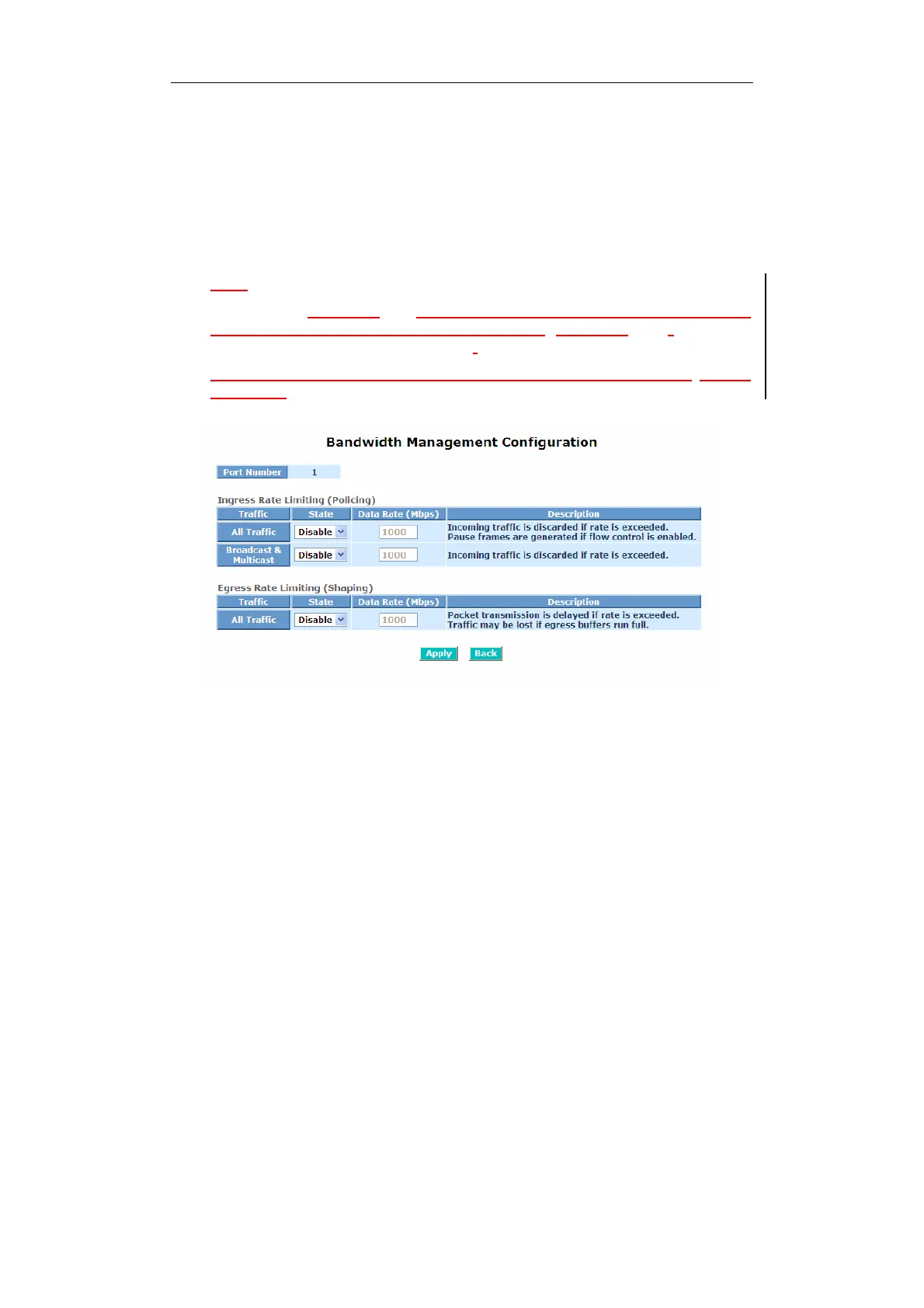

Fig. 3-16
Parameter description:
Port Number:
Choose the port that you would like this function to work on it. Valid
range of the port is 1~8.
All Traffic for Ingress Rate Limiting(Policing):
Set up the limit of Ingress bandwidth for the port you choose. Incoming
traffic will be discarded if the rate exceeds the value you set up in Data
Rate field. Pause frames are also generated if flow control is enabled.
The format of the packet limits to unicast, broadcast and multicast. Valid
range is 0~1000.
